Communicating Wall Sensors
We offer 3 main styles of wall sensor to meet your functional needs in a variety of color combinations that match your projects style. These wall modules may only be used with RTUS, HPS, and VAV controllers.
-
Communicating Wall Sensors
Prolon’s communicating wall sensors are an extension of the controller to which they are connected. Just as the controllers communicate with each other across the network, our wall modules “talk” to their associated controller rather than sending conventional resistive signals. Note that, even though these wall modules are “communicating”, they will not occupy a network address or deduct from your total available network device count.
All wall sensors include:
- 10k-3 NTC thermistor with 1% accuracy
- Easy wiring with numbered screw type terminal block or RJ45 modular jack
- Mounting hardware provided for installation on dry wall or a standard single-gang electrical box

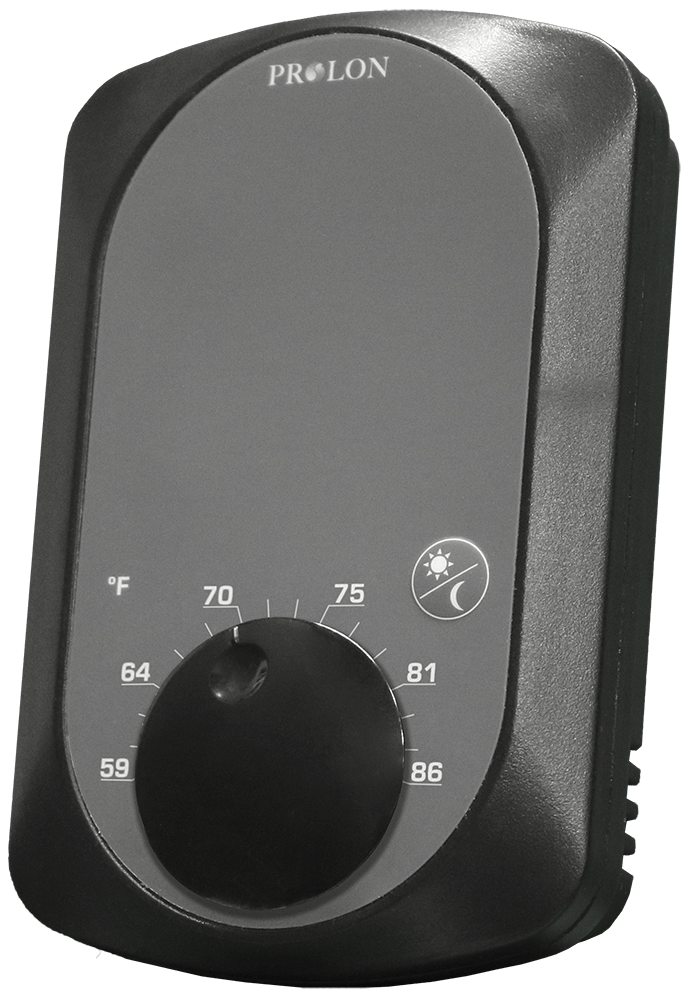

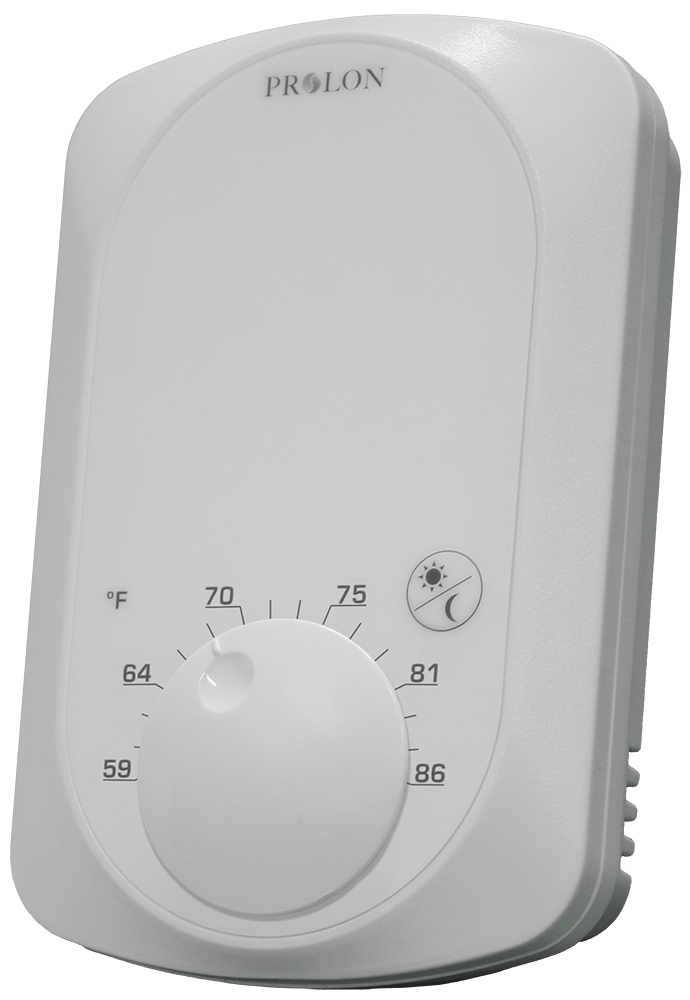

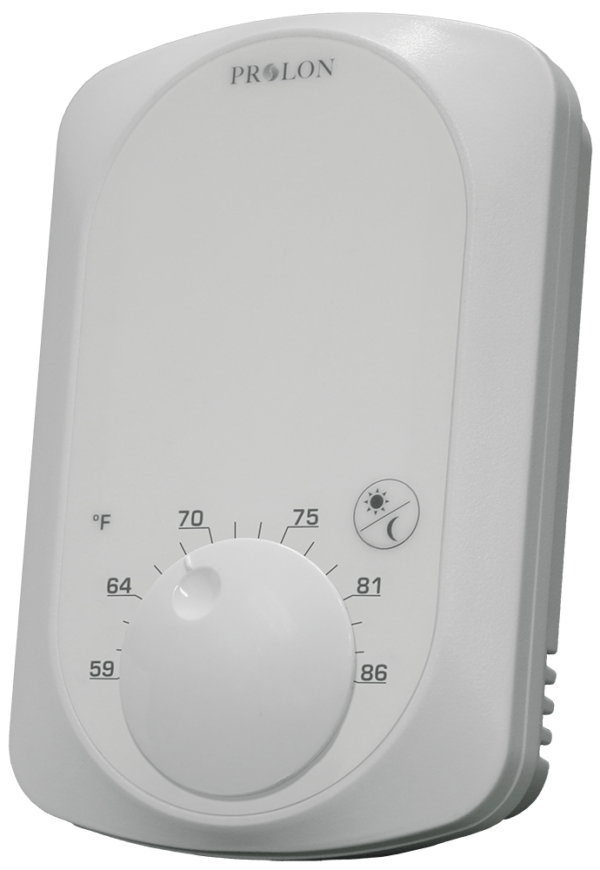

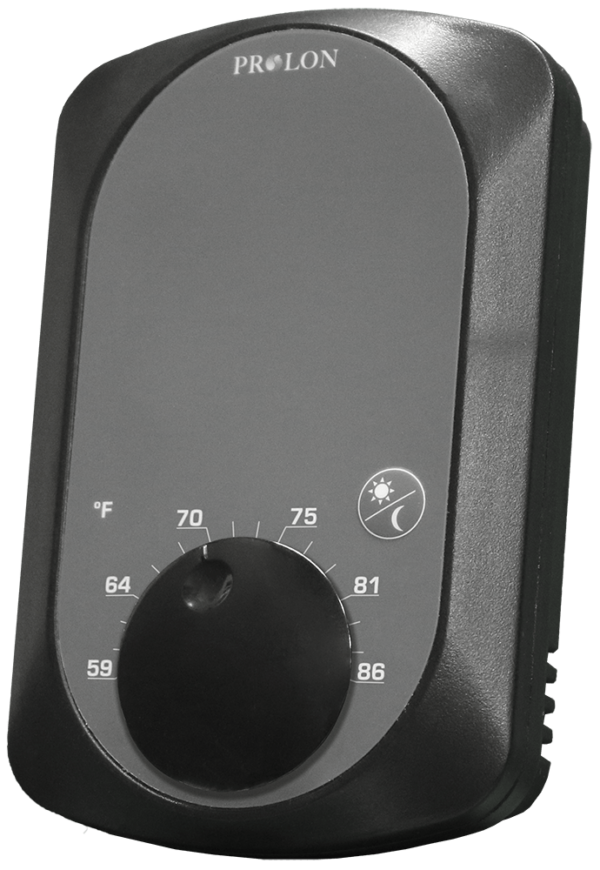

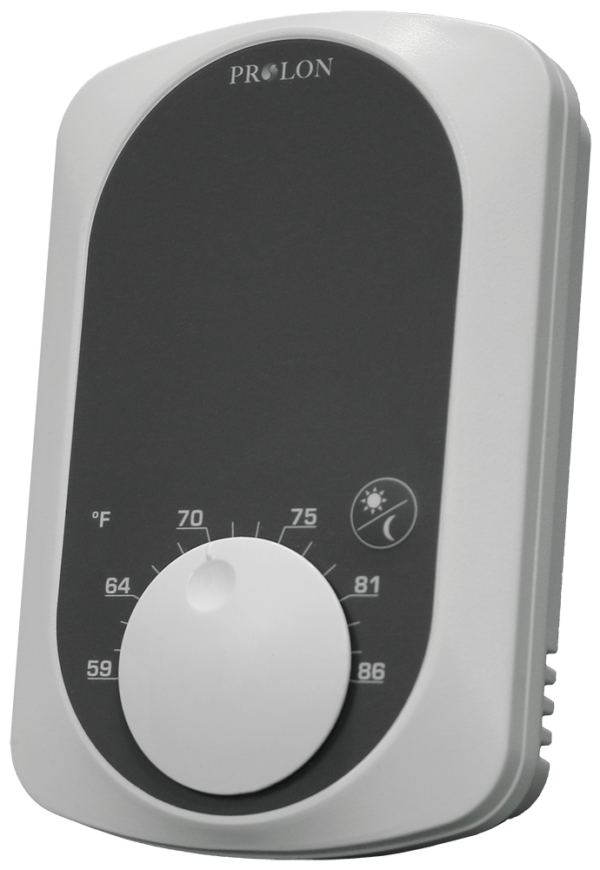

T200 Features
- Set Point adjustment knob with printed label showing

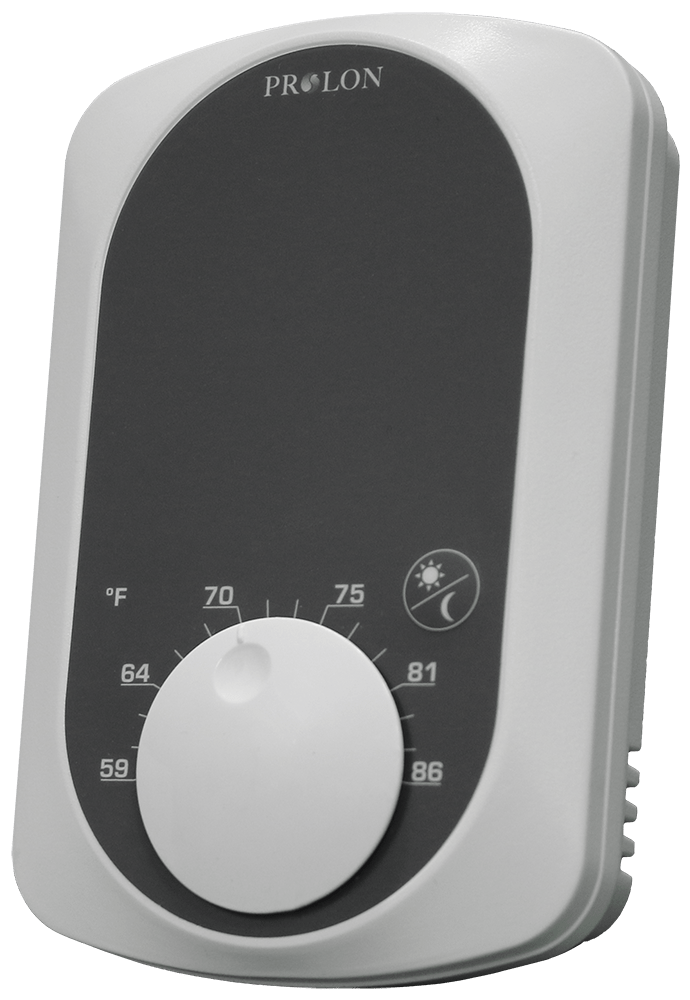

- PL-T200F: 59°-86°F
- PL-T200C: 15-30°C
- PL-T200A: +/-

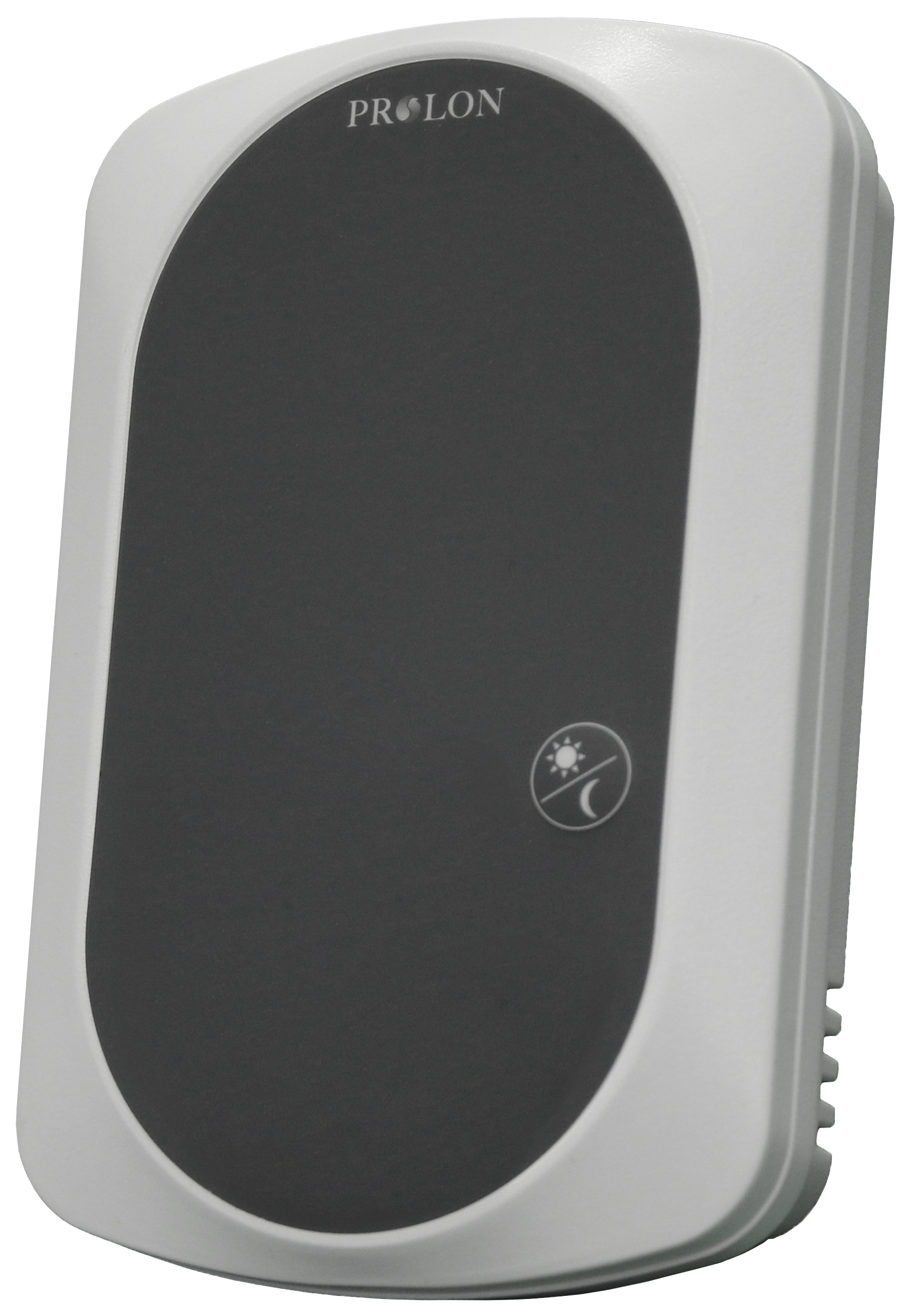

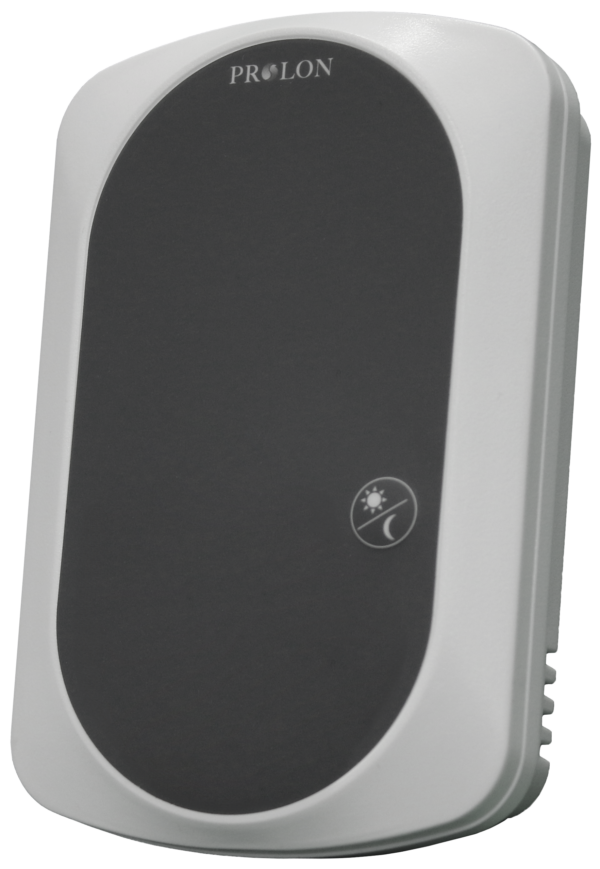

- Available without Set Point adjustment knob
- PL-T200B
- Embossed momentary pushbutton to override unoccupied status on all models

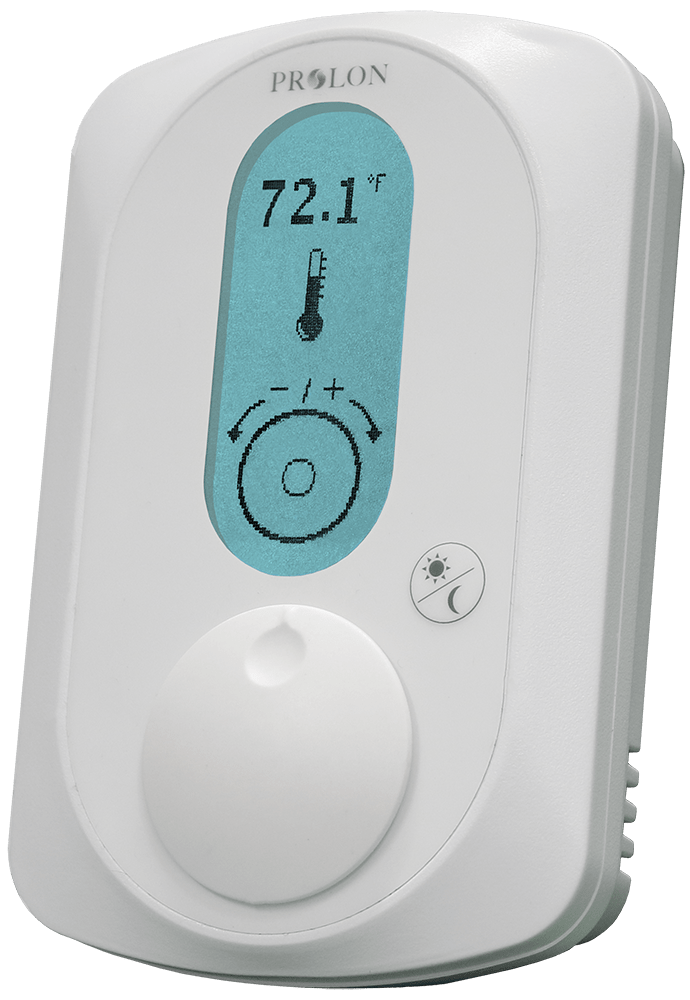

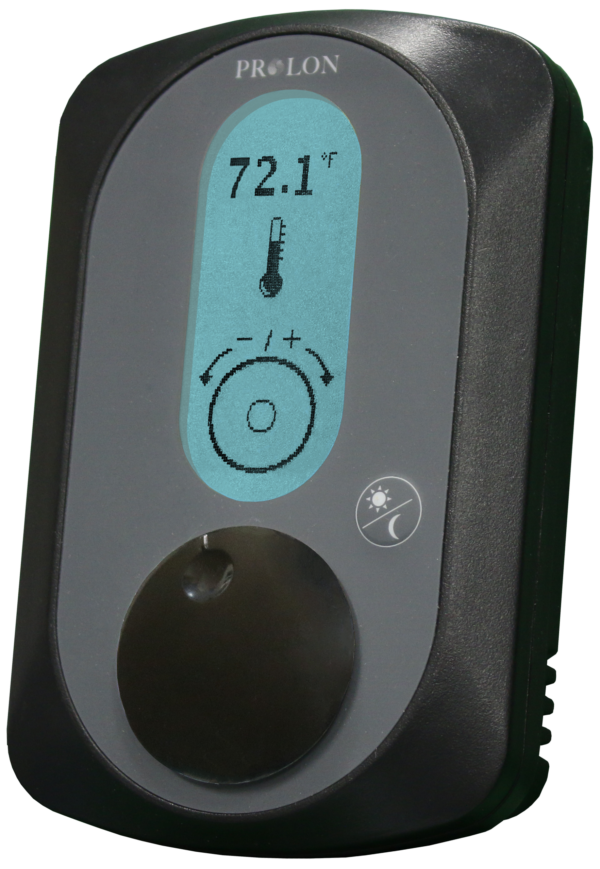

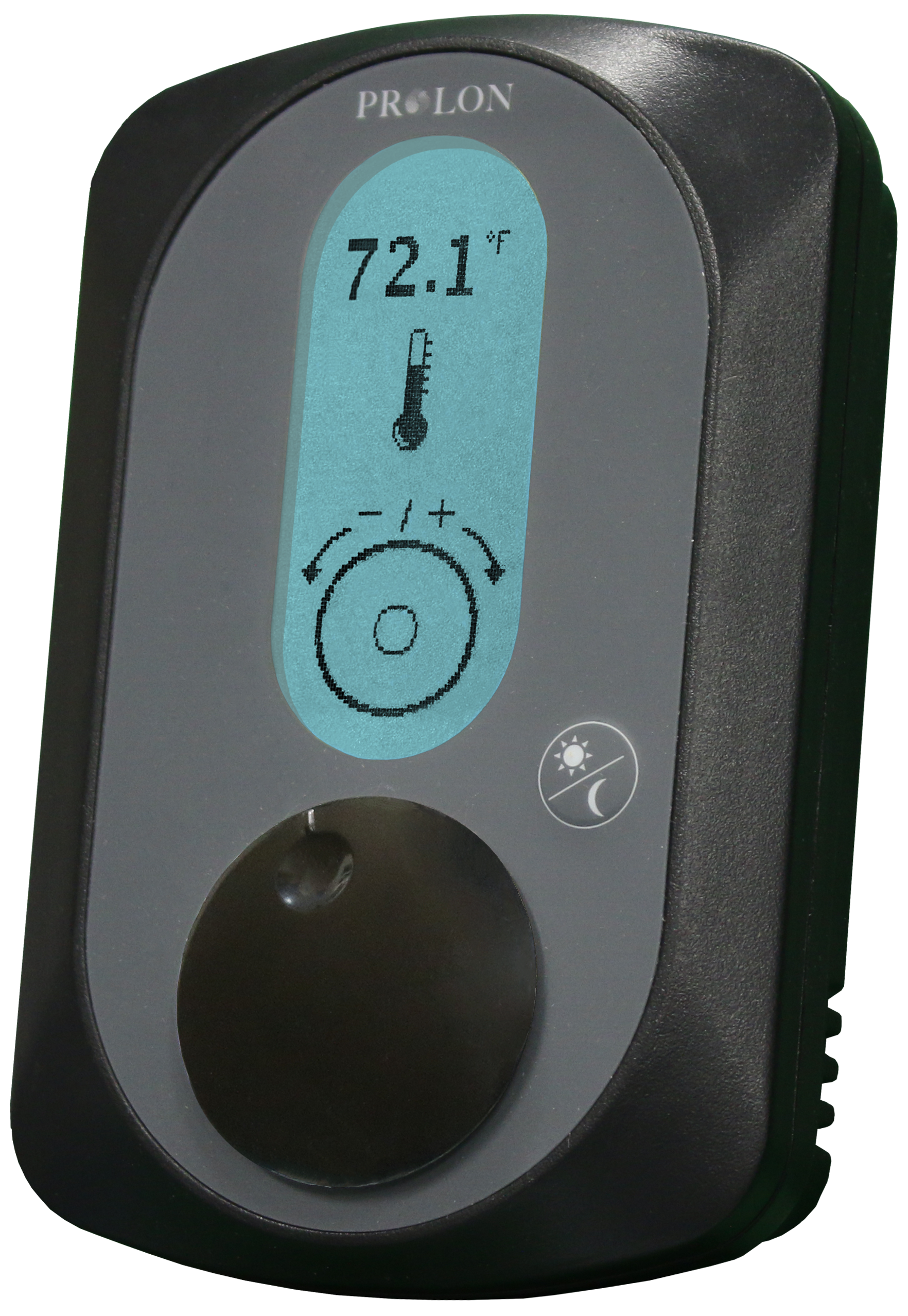

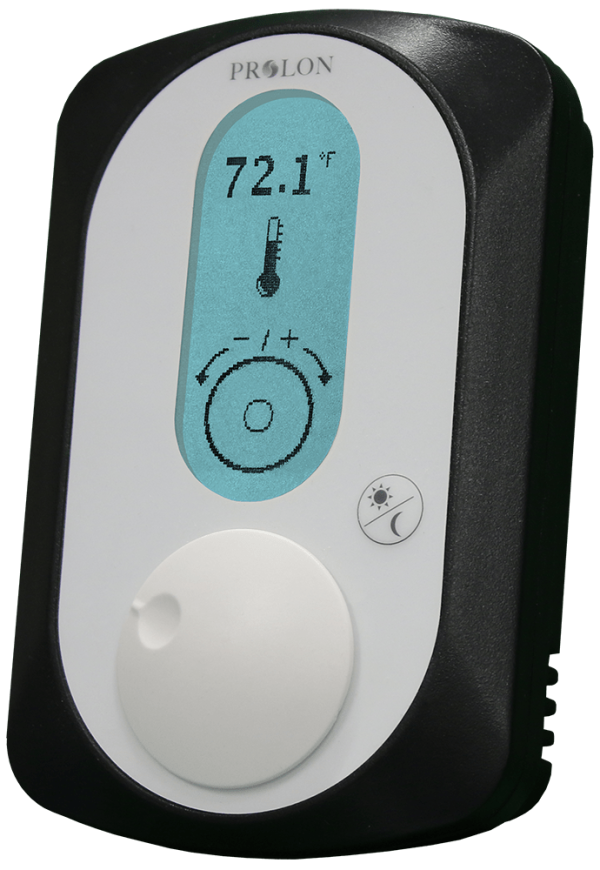

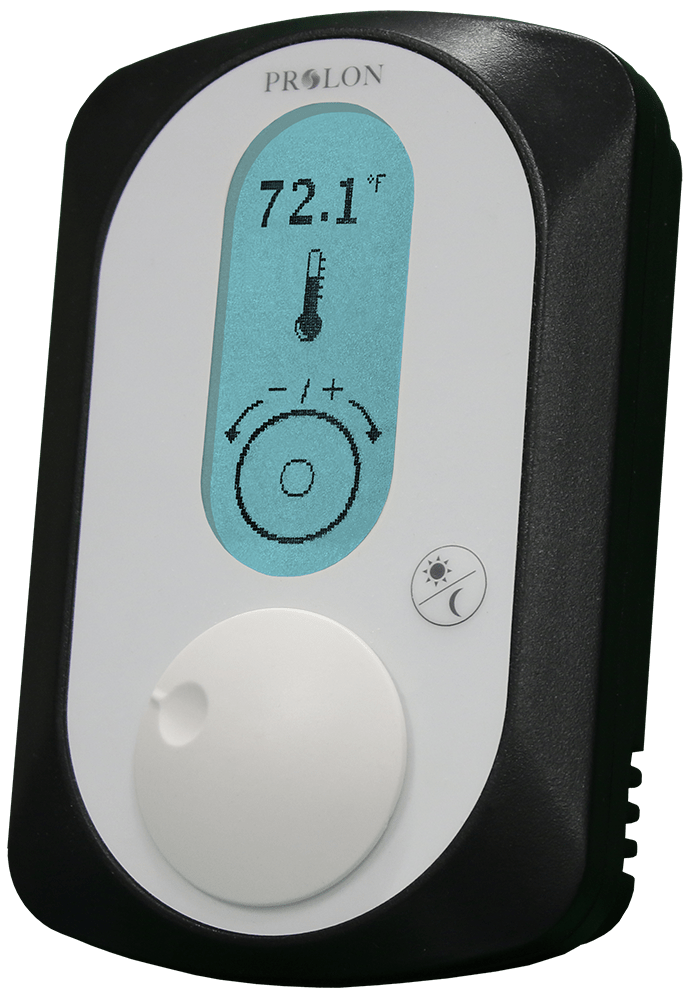

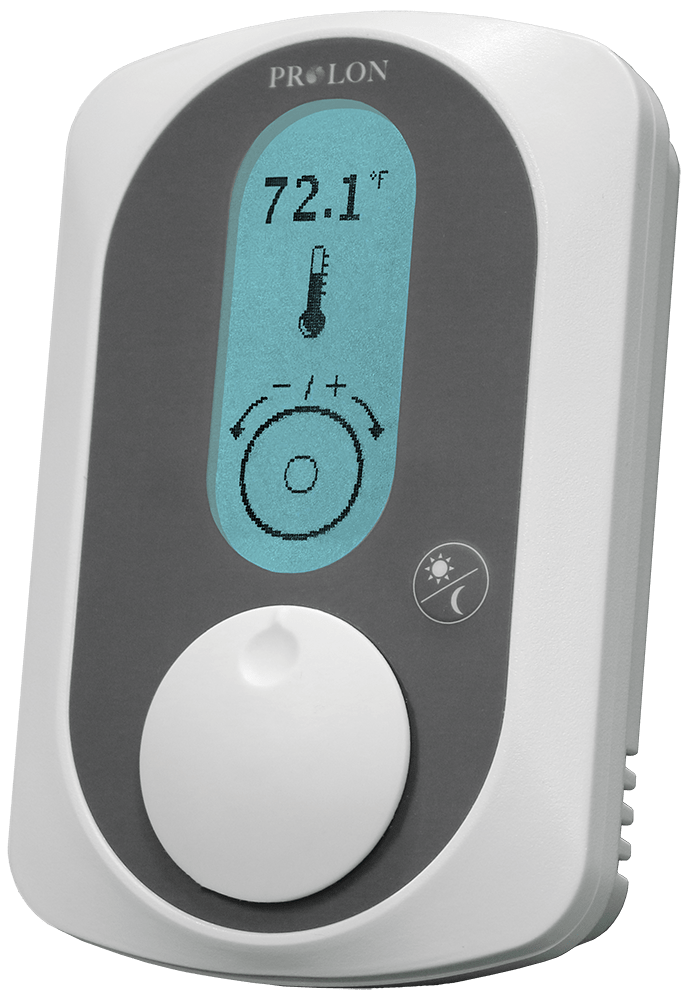

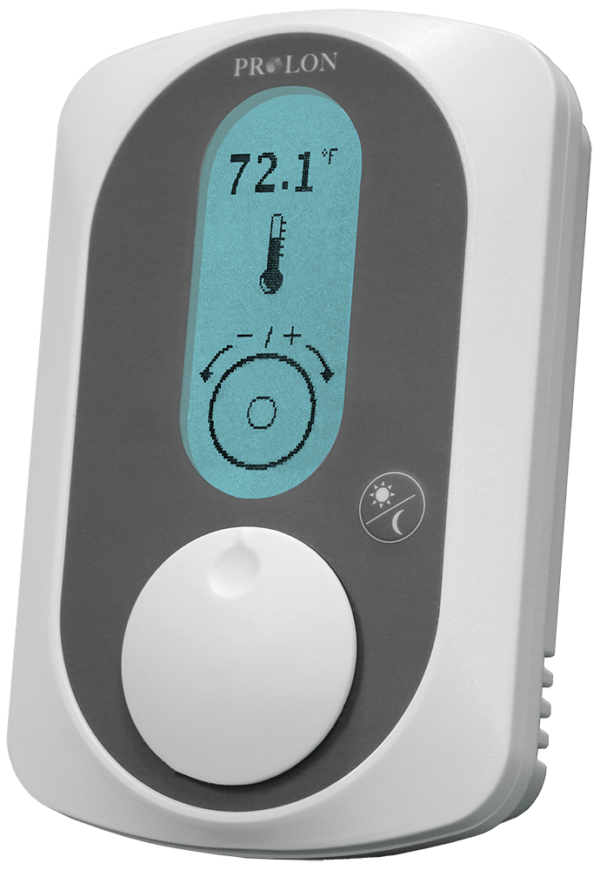

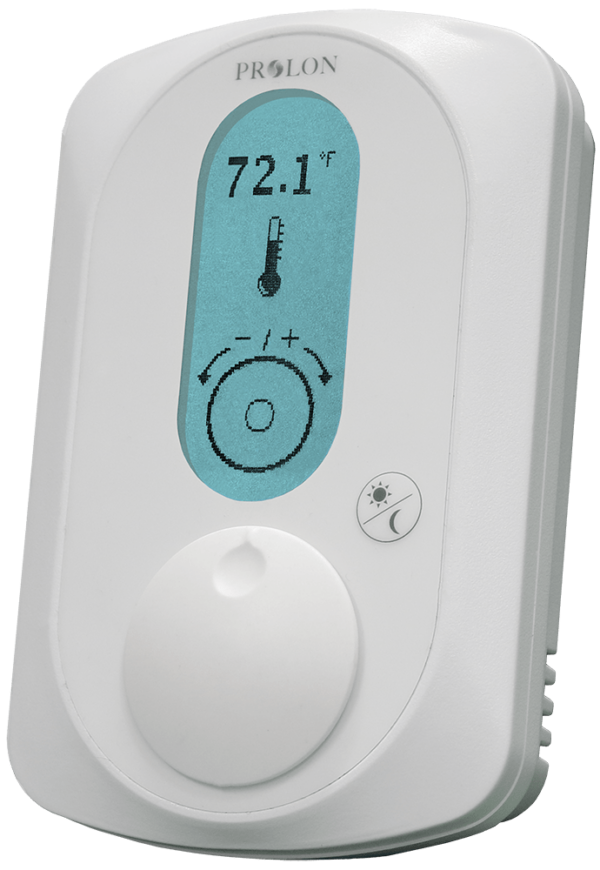

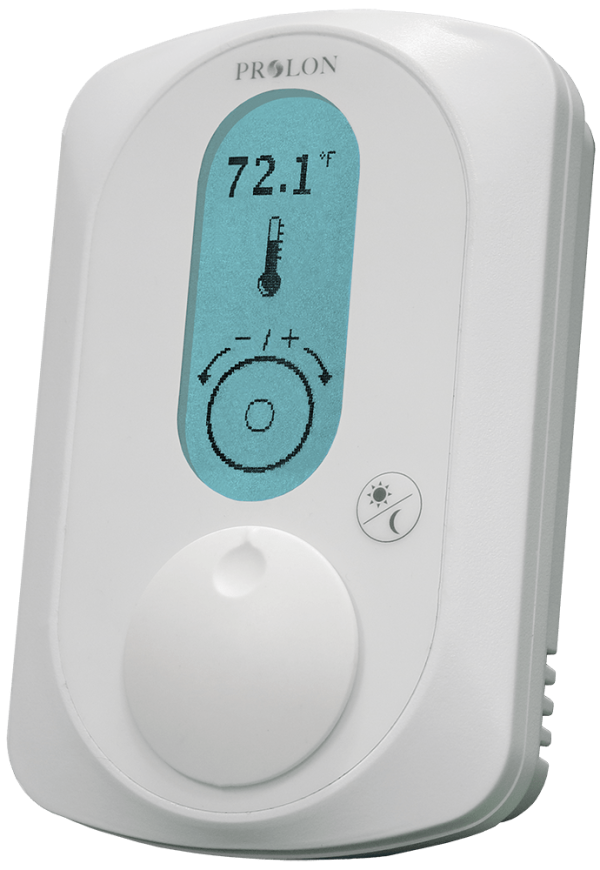

T500 Features
- Infinitely turning physical knob with incremental detents (mechanical feedback) allows for precise setpoint adjustment
- Oval shaped, graphical display to clearly see setpoints and temperatures
- Shows current room temperature when idle
- Shows heating and cooling setpoints while adjusting
- Backlight operates only while adjusting
- Embossed momentary pushbutton to override unoccupied status

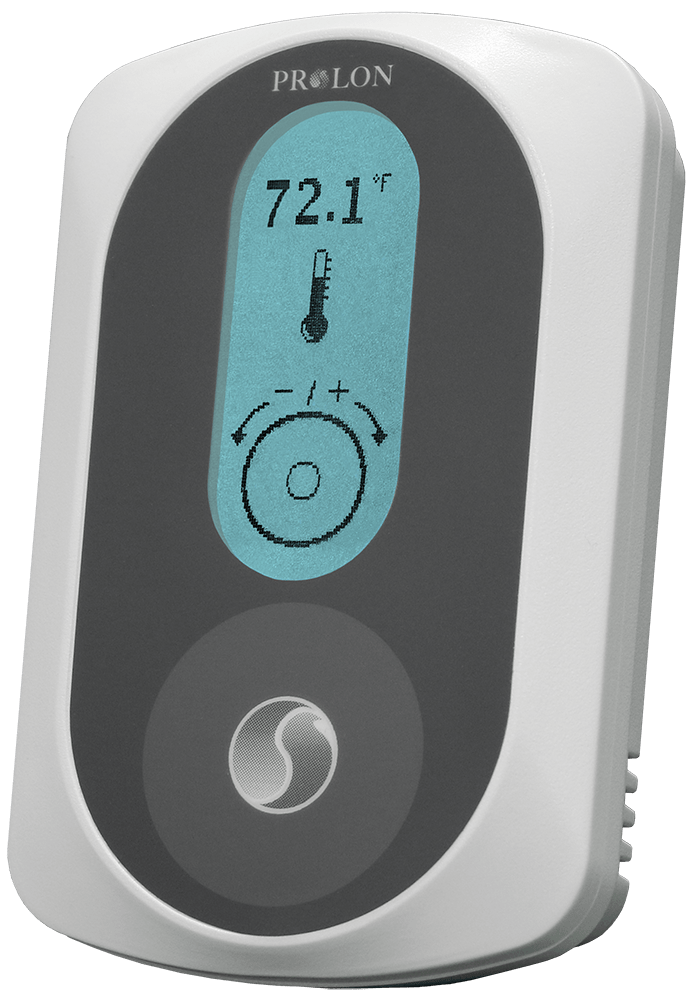

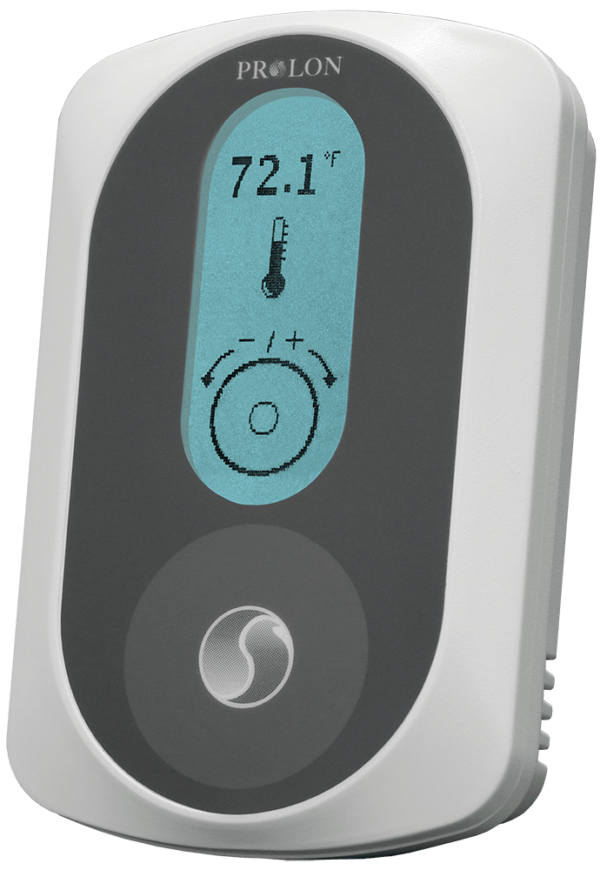

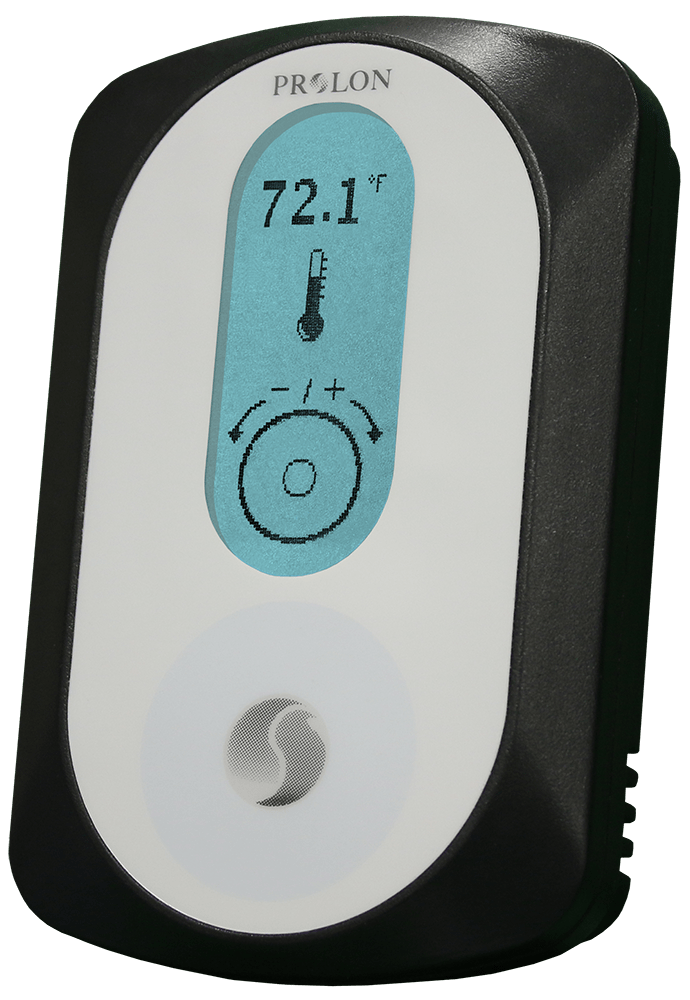

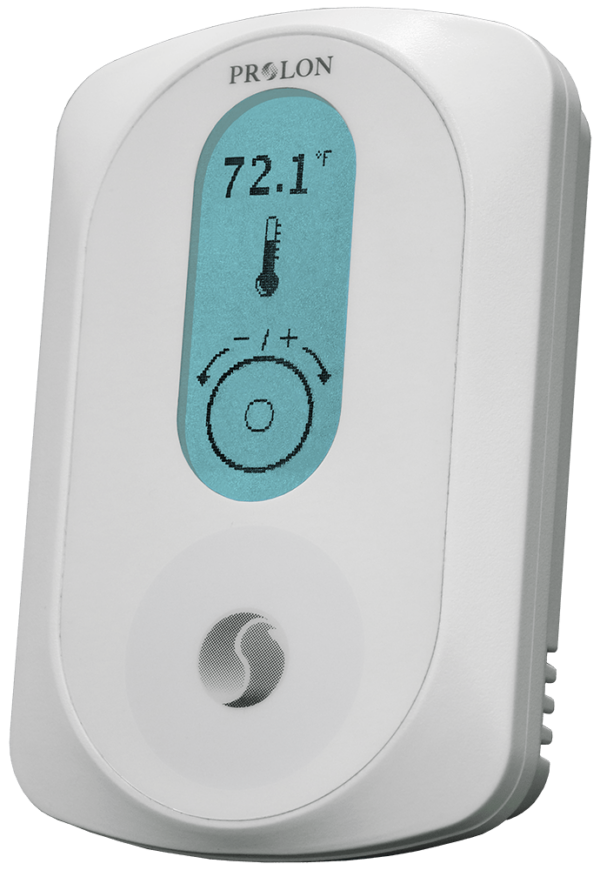

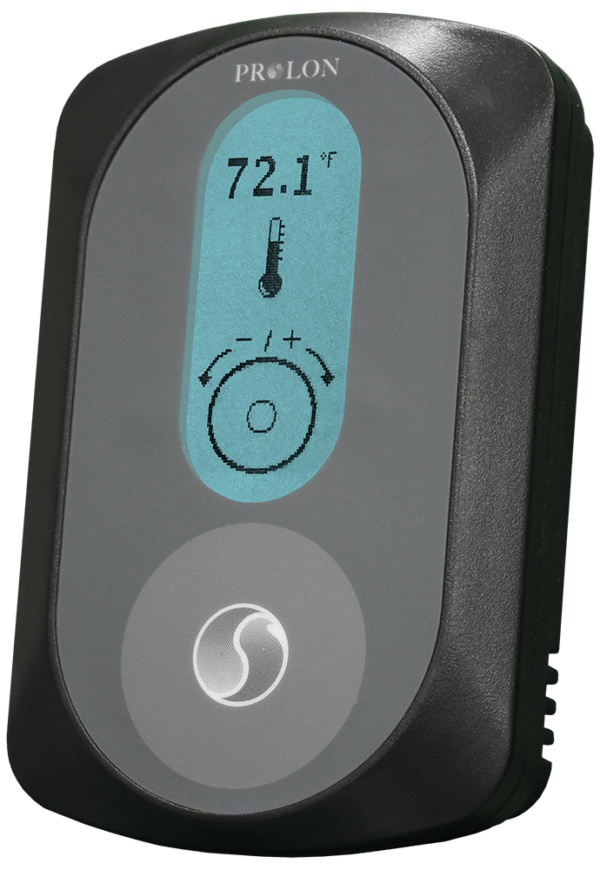

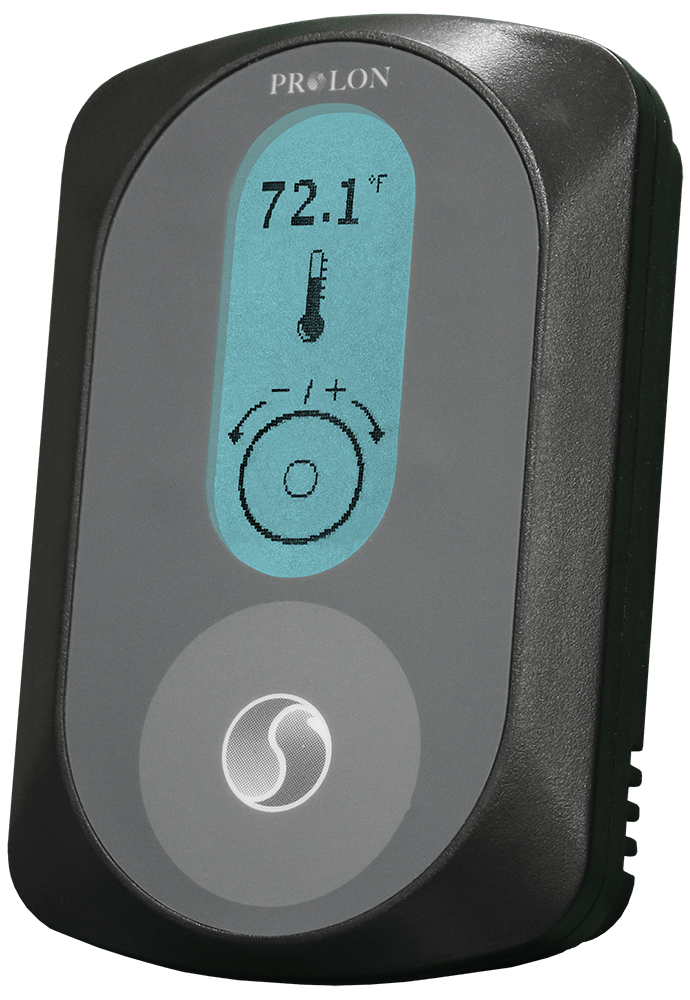

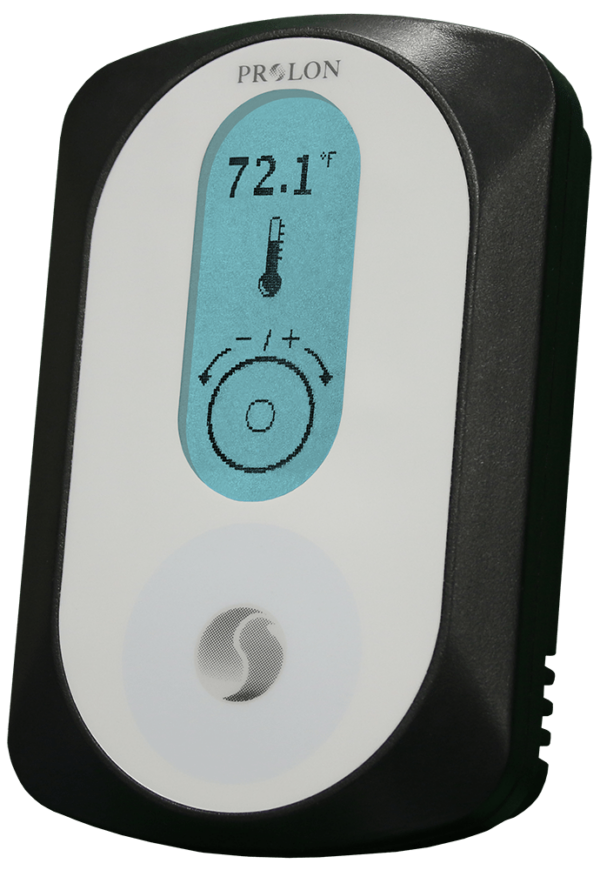

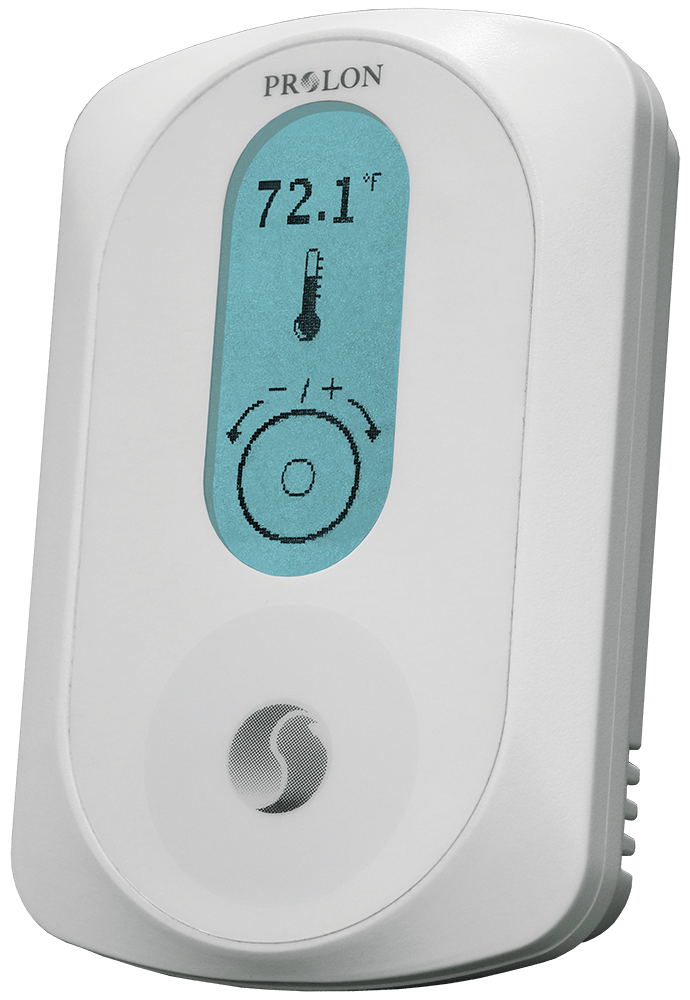

T1000 Features
- Circular capacitive touchpad and graphical display for simple and intuitive control
- Oval shaped, graphical display to clearly see setpoints and temperatures
- Shows current room temperature when idle
- Shows heating and cooling setpoints while adjusting
- Auxiliary temperature input for remote temperature sensing or space temperature averaging
- Option for momentary or continuous display backlight
- Swipe-to-Override feature instead of embossed button
- Because of the communicating nature of Prolon’s wall sensors, the T1000 may be used to configure all settings in a VAV controller through an on screen menu system.
-
Specifications
Communicating Wall Sensors
Prolon’s communicating wall sensors are an extension of the controller to which they are connected. Just as the controllers communicate with each other across the network, our wall modules “talk” to their associated controller rather than sending conventional resistive signals. Note that, even though these wall modules are “communicating”, they will not occupy a network address or deduct from your total available network device count.
All wall sensors include:
- 10k-3 NTC thermistor with 1% accuracy
- Easy wiring with numbered screw type terminal block or RJ45 modular jack
- Mounting hardware provided for installation on dry wall or a standard single-gang electrical box
T200 Features
- Set Point adjustment knob with printed label showing
- PL-T200F: 59°-86°F
- PL-T200C: 15-30°C
- PL-T200A: +/-
- Available without Set Point adjustment knob
- PL-T200B
- Embossed momentary pushbutton to override unoccupied status on all models
T500 Features
- Infinitely turning physical knob with incremental detents (mechanical feedback) allows for precise setpoint adjustment
- Oval shaped, graphical display to clearly see setpoints and temperatures
- Shows current room temperature when idle
- Shows heating and cooling setpoints while adjusting
- Backlight operates only while adjusting
- Embossed momentary pushbutton to override unoccupied status
T1000 Features
- Circular capacitive touchpad and graphical display for simple and intuitive control
- Oval shaped, graphical display to clearly see setpoints and temperatures
- Shows current room temperature when idle
- Shows heating and cooling setpoints while adjusting
- Auxiliary temperature input for remote temperature sensing or space temperature averaging
- Option for momentary or continuous display backlight
- Swipe-to-Override feature instead of embossed button
- Because of the communicating nature of Prolon’s wall sensors, the T1000 may be used to configure all settings in a VAV controller through an on screen menu system.
- Documentation
