Three Controller Panel

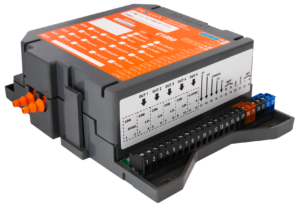

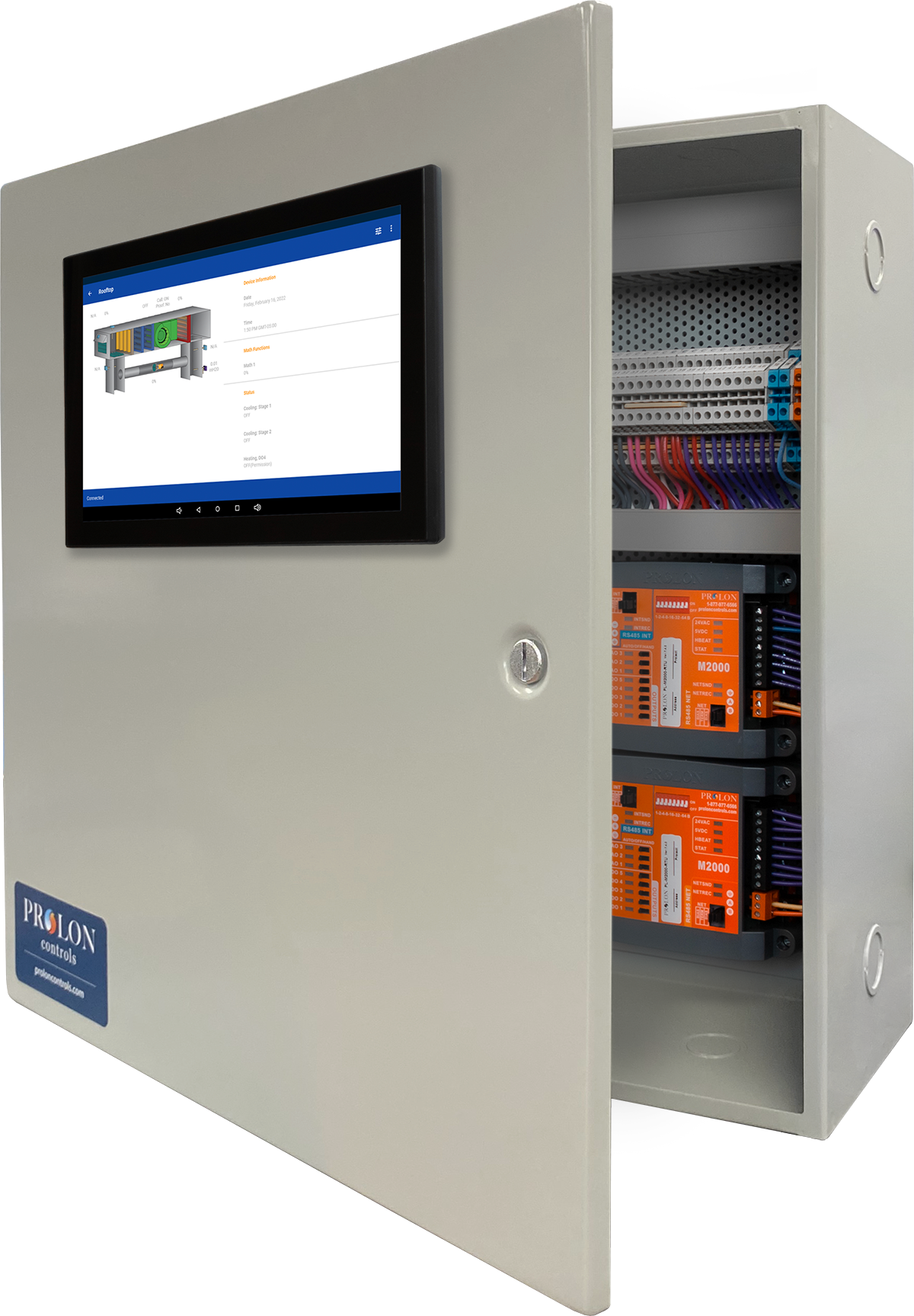

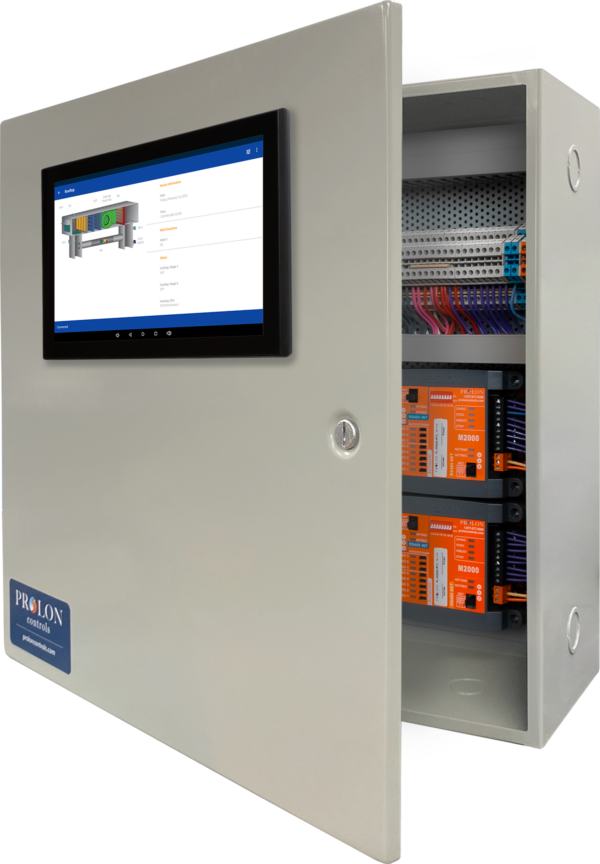

Our three-controller panels offer a more efficient footprint for areas that have a higher controller density such as equipment that requires additional I/O or areas where multiple pieces of equipment are grouped. Mix and match your choice of any (3) M2000 or C1050 controllers in a prewired, UL certified panel ready for installation on any project. You may also choose the NC2000 as one of the three controllers in the panel, which provides the option to add the 10″ touchscreen interface on the front of the panel door. Its compact design allows for multiple panels to be installed in your work space.
For specific models, please contact us.
-
- Any (3) PL-M2000 and/or PL-C1050 controllers of your choice OR any (2) controllers with an NC2000 built into a NEMA 1 Enclosure
- Dimensions: 24” (H) x 24” (W) x 6” (D) panel with top & bottom knockout holes
- Isolation relays (17A @ 277 VAC) on all Digital Outputs (C1050=4, M2000=5)
- Disconnect Slo-Blo fuse (3A @ 250 VAC), with additional replacement fuse included
- Terminal strip for all external connections (24VAC power supply, inputs, outputs, communication)
- Panel wiring diagram included in the panel door
- All inputs & outputs tested in factory to ensure accuracy and reliability
- Complete panel is UL Certified
-
Specifications
- Any (3) PL-M2000 and/or PL-C1050 controllers of your choice OR any (2) controllers with an NC2000 built into a NEMA 1 Enclosure
- Dimensions: 24” (H) x 24” (W) x 6” (D) panel with top & bottom knockout holes
- Isolation relays (17A @ 277 VAC) on all Digital Outputs (C1050=4, M2000=5)
- Disconnect Slo-Blo fuse (3A @ 250 VAC), with additional replacement fuse included
- Terminal strip for all external connections (24VAC power supply, inputs, outputs, communication)
- Panel wiring diagram included in the panel door
- All inputs & outputs tested in factory to ensure accuracy and reliability
- Complete panel is UL Certified
