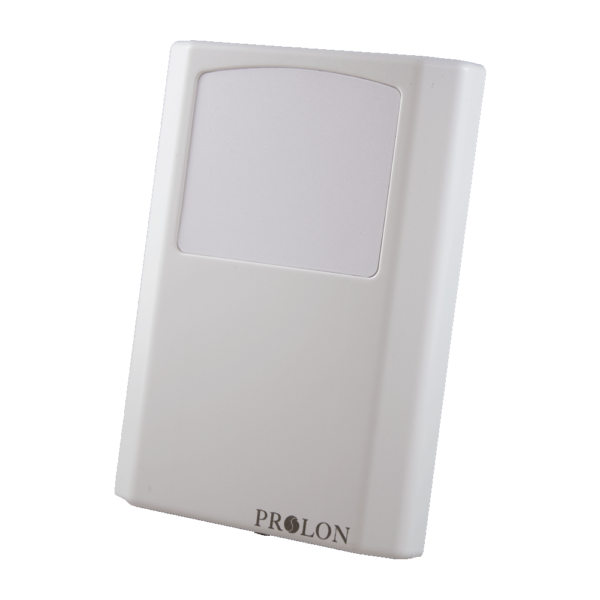

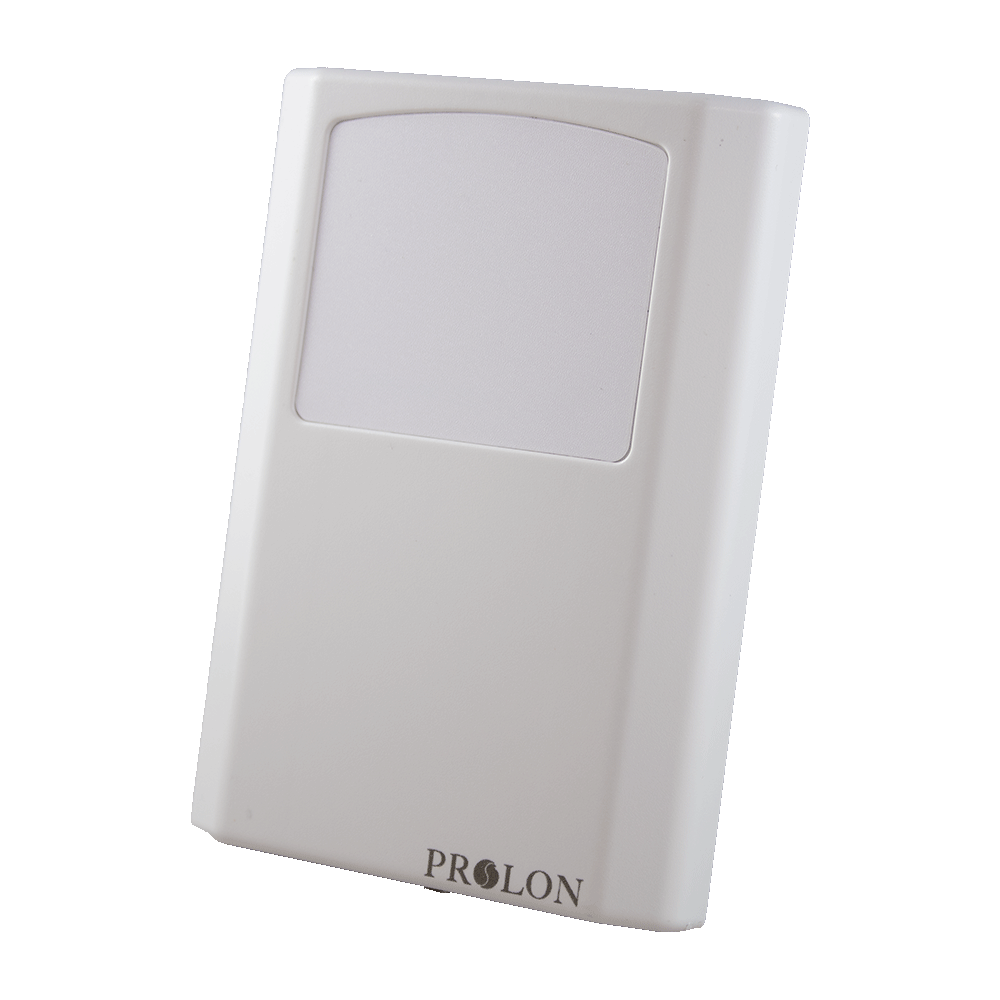

Room Humidity Transmitter
The PL-RM-RH series room humidity transmitter uses a highly accurate and field-proven RH sensor in an attractive low profile enclosure to monitor room relative humidity levels.
-
- Sensor: Thermoset polymer based capacitive
- Accuracy: ±5 %RH (5 to 95 %RH)
- Range: 0 to 100 %RH
- Output Signal: 4-20 mA, 0-5 Vdc or 0-10 Vdc (field selectable)
- Operating Conditions: 32 to 122°F (0 to 50°C)
- Enclosure: White ABS, UL94-v0, IP30 (NEMA 1)
-
Specifications
- Sensor: Thermoset polymer based capacitive
- Accuracy: ±5 %RH (5 to 95 %RH)
- Range: 0 to 100 %RH
- Output Signal: 4-20 mA, 0-5 Vdc or 0-10 Vdc (field selectable)
- Operating Conditions: 32 to 122°F (0 to 50°C)
- Enclosure: White ABS, UL94-v0, IP30 (NEMA 1)
