Rooftop Unit Controllers
Our rooftop controllers are designed to monitor and control standard packaged rooftop units, split systems and air handling units. Perfect for use of units up to 25 tons of cooling. Also adaptable to units up to 60 tons of cooling. Choose the M2000 hardware if you need to control an economizer, manage duct pressure, or need a time clock for scheduling.
-

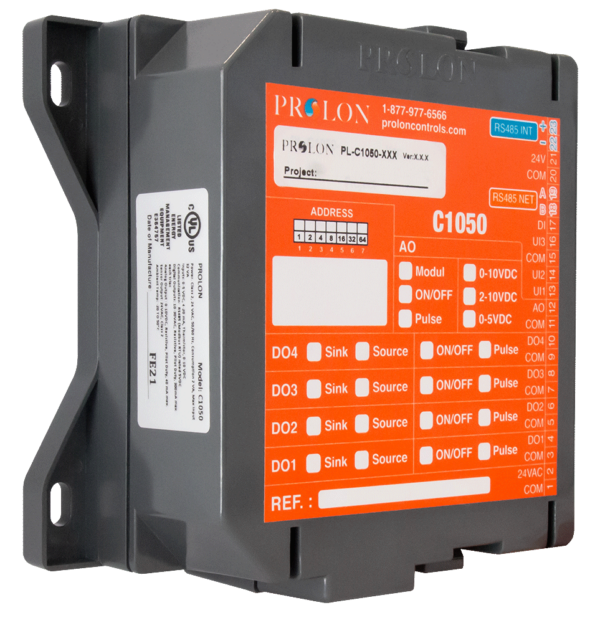

C1050
- Standalone or networked operation
- Proportional+Integral (PI) control loops maximize performance
- Built-in protection sequences with configurable temperature limits and minimum delays
- 3 analog, 1 digital inputs
- 4 digital, 1 analog outputs with self-resetting fuses
- Quick and easy installation using detachable numbered terminal blocks
- Configurable unoccupied mode sequences
- Control up to 2 stages of heating and 4 stages of cooling -or- full modulation
- Control equipment based on zone demand or supply air temperature
- Input for proof of fan
- Choice of math functions allows customizable multiple zone management by allowing you to determine how your system reacts to multiple simultaneous heating and cooling requests (Zoning version only)
- Dehumidification sequences available when networked with a Prolon humidity controller
- Digital Outputs have selectable Sync/Source switches

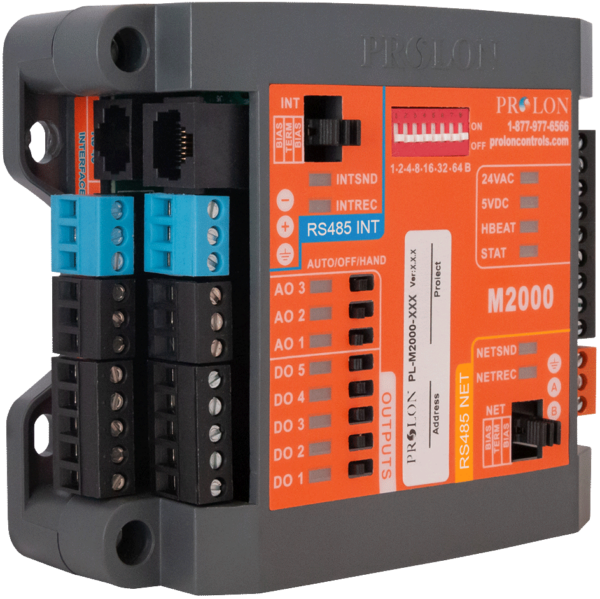

M2000
- Standalone or networked operation
- Proportional+Integral (PI) control loops maximize performance
- Built-in protection sequences with configurable temperature limits and minimum delays
- 9 universal inputs
- 5 digital, 3 analog outputs with self-resetting fuses
- Quick and easy installation using detachable numbered terminal blocks
- Configurable unoccupied mode sequences
- Control up to 3 stages of heating and 4 stages of cooling -or- full modulation
- Control equipment based on zone demand or supply air temperature
- Input for proof of fan
- Choice of math functions allows customizable multiple zone management by allowing you to determine how your system reacts to multiple simultaneous heating and cooling requests (Zoning version only)
- Dehumidification sequences available when humidity sensor installed or networked with a Prolon humidity controller
- Economizer, CO2 demand controlled ventilation and static pressure control available
- Internal time clock with 7-day configurable schedule and holiday calendar
- Hand/Off/Auto switches on all 8 outputs
-
Specifications

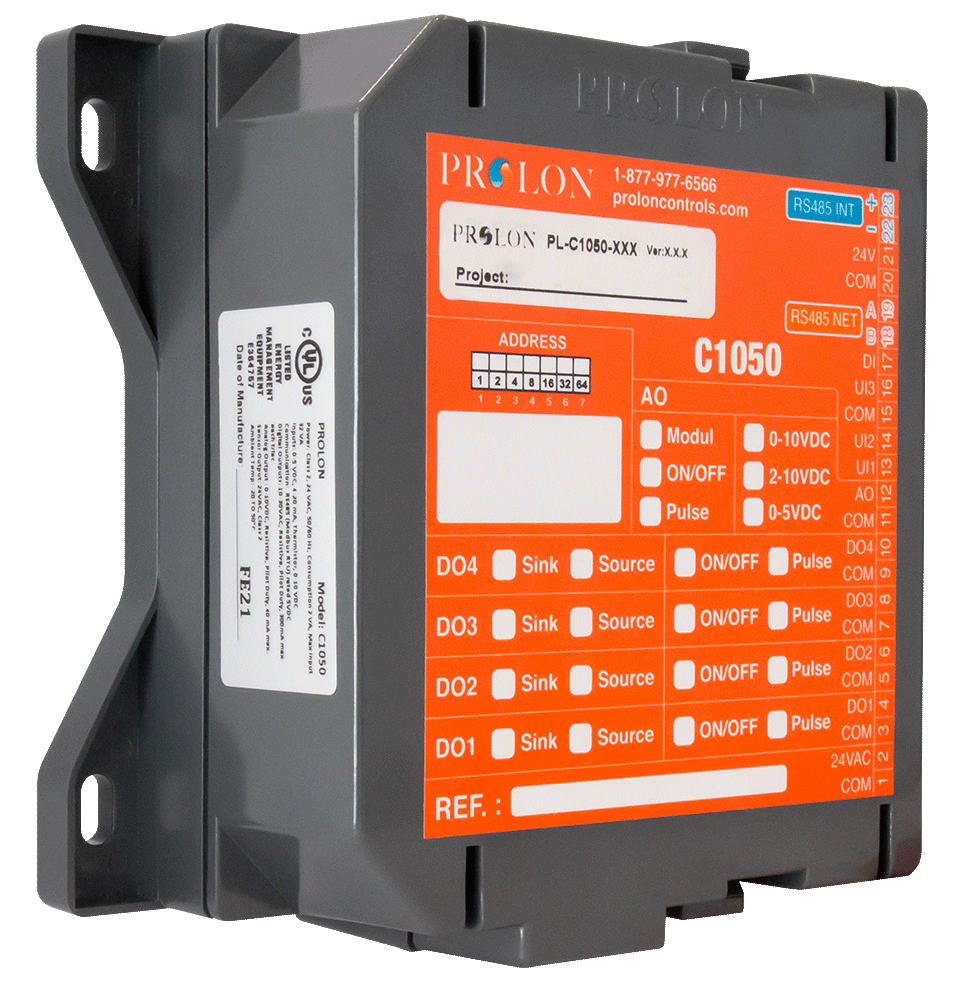

C1050
- Standalone or networked operation
- Proportional+Integral (PI) control loops maximize performance
- Built-in protection sequences with configurable temperature limits and minimum delays
- 3 analog, 1 digital inputs
- 4 digital, 1 analog outputs with self-resetting fuses
- Quick and easy installation using detachable numbered terminal blocks
- Configurable unoccupied mode sequences
- Control up to 2 stages of heating and 4 stages of cooling -or- full modulation
- Control equipment based on zone demand or supply air temperature
- Input for proof of fan
- Choice of math functions allows customizable multiple zone management by allowing you to determine how your system reacts to multiple simultaneous heating and cooling requests (Zoning version only)
- Dehumidification sequences available when networked with a Prolon humidity controller
- Digital Outputs have selectable Sync/Source switches
M2000
- Standalone or networked operation
- Proportional+Integral (PI) control loops maximize performance
- Built-in protection sequences with configurable temperature limits and minimum delays
- 9 universal inputs
- 5 digital, 3 analog outputs with self-resetting fuses
- Quick and easy installation using detachable numbered terminal blocks
- Configurable unoccupied mode sequences
- Control up to 3 stages of heating and 4 stages of cooling -or- full modulation
- Control equipment based on zone demand or supply air temperature
- Input for proof of fan
- Choice of math functions allows customizable multiple zone management by allowing you to determine how your system reacts to multiple simultaneous heating and cooling requests (Zoning version only)
- Dehumidification sequences available when humidity sensor installed or networked with a Prolon humidity controller
- Economizer, CO2 demand controlled ventilation and static pressure control available
- Internal time clock with 7-day configurable schedule and holiday calendar
- Hand/Off/Auto switches on all 8 outputs
