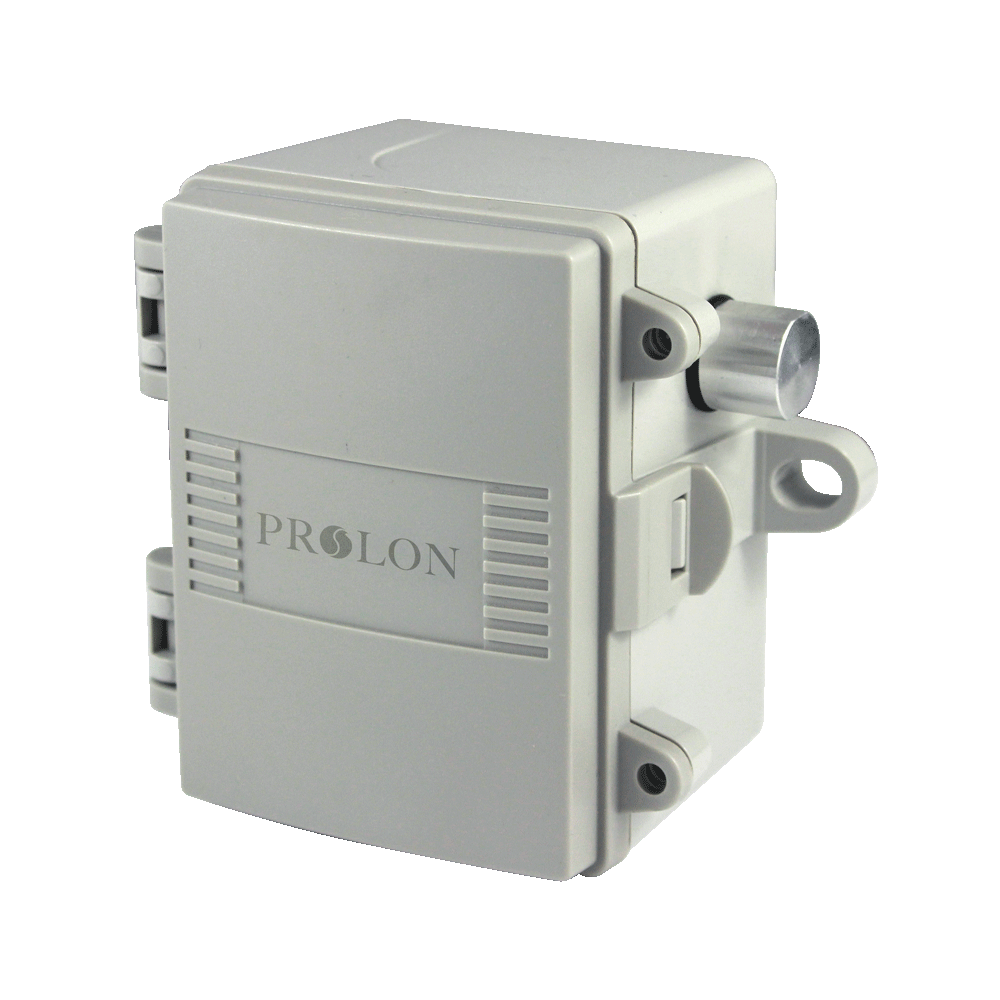

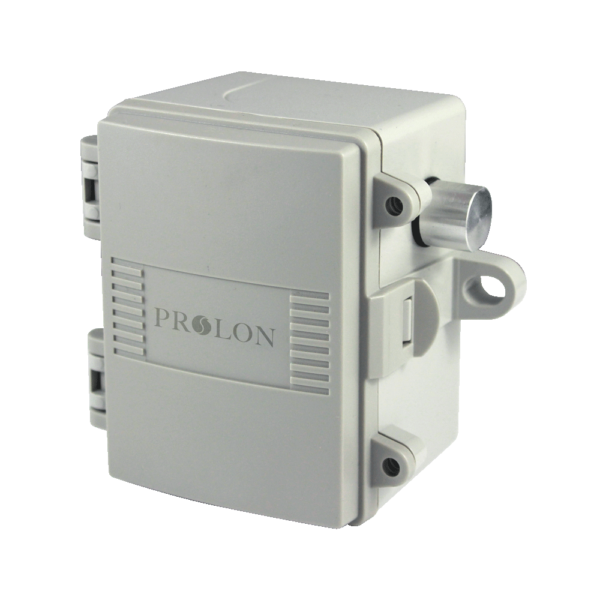

Outside Temperature Sensor
The single point outside air temperature sensor utilizes a precision sensor encapsulated in an aluminum probe. The probe is constructed to provide excellent heat transfer, fast response, and is potted to resist moisture penetration.
-
- Sensor Type: 10,000 Ω Type 3, NTC Thermistor, ±0.2°C
- Sensor Accuracy: ±0.36°F (±0.2°C) @ 77°F (25°C)
- Ambient Operating Range: -40 to 122°F (-40 to 50°C), 5 to 95 %RH non-condensing
- Enclosure: Polycarbonate, UL94-V0, IP65 (NEMA 4X)
-
Specifications
- Sensor Type: 10,000 Ω Type 3, NTC Thermistor, ±0.2°C
- Sensor Accuracy: ±0.36°F (±0.2°C) @ 77°F (25°C)
- Ambient Operating Range: -40 to 122°F (-40 to 50°C), 5 to 95 %RH non-condensing
- Enclosure: Polycarbonate, UL94-V0, IP65 (NEMA 4X)
