One Controller Panel

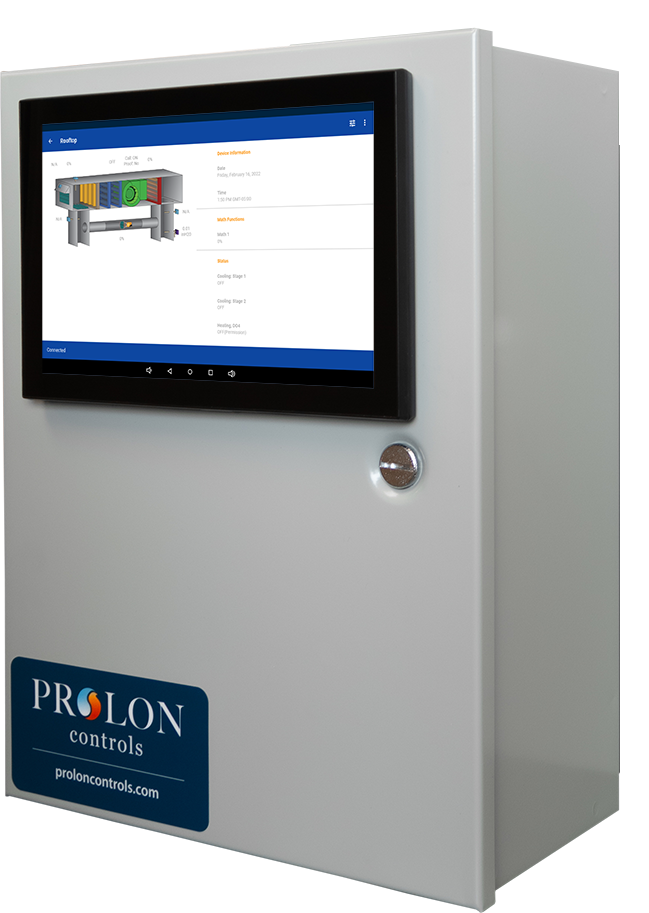

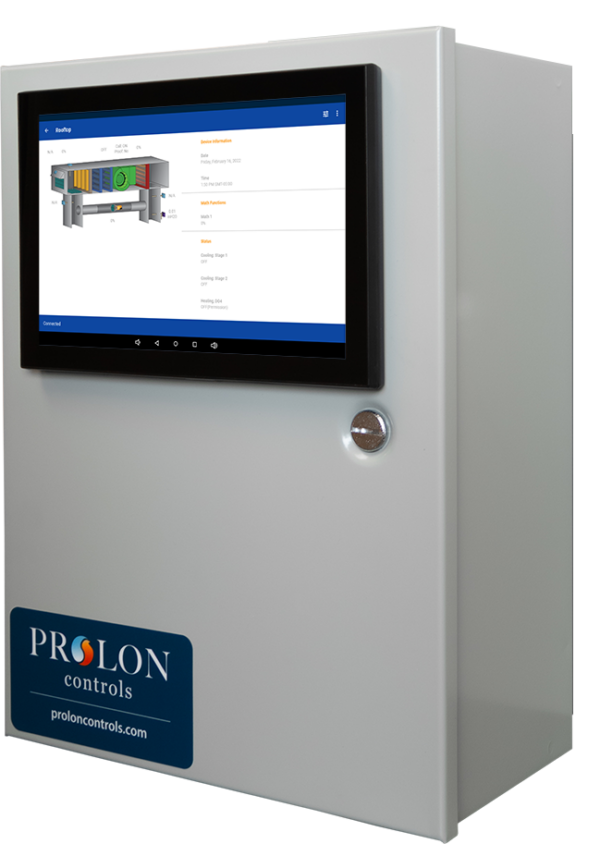

Prolon single controller panels are perfect for installations requiring basic control options, making installations quick, clean, and repeatable. Configured with any (1) of your choice of an NC2000, M2000, or a C1050 controller in a prewired, UL-certified panel ready for installation on any project. Users can benefit from an optional integrated 10″ LCD touchscreen display for monitoring points and adjusting settings when a NC2000 is selected. Prolon panels are versatile enough to handle diverse projects safely and reliably, leaving your job with a clean, professional appearance.
-
- (1) NC2000, M2000, or C1050 controller of your choice built into a NEMA 1 Enclosure
- Dimensions: 16” (H) x 12” (W) x 6” (D) panel with top & bottom knockout holes
- Isolation relays (17A @ 277 VAC) on all Digital Outputs (C1050=4, M2000=5)
- Disconnect-style Slo-Blo fuse (3A @ 250 VAC), with additional replacement fuse included
- Terminal strip for all external connections (24VAC power supply, inputs, outputs, communication)
- Panel wiring diagram specific to controller program included in the panel door
- All inputs & outputs tested in factory to ensure accuracy and reliability
- Complete panel is UL508A Certified
-
Specifications
- (1) NC2000, M2000, or C1050 controller of your choice built into a NEMA 1 Enclosure
- Dimensions: 16” (H) x 12” (W) x 6” (D) panel with top & bottom knockout holes
- Isolation relays (17A @ 277 VAC) on all Digital Outputs (C1050=4, M2000=5)
- Disconnect-style Slo-Blo fuse (3A @ 250 VAC), with additional replacement fuse included
- Terminal strip for all external connections (24VAC power supply, inputs, outputs, communication)
- Panel wiring diagram specific to controller program included in the panel door
- All inputs & outputs tested in factory to ensure accuracy and reliability
- Complete panel is UL508A Certified
