Hydronics Controller
Our hydronics controller is designed to monitor and control geothermal, water-to-water heat pump systems and dual energy boiler systems. Due to the usually complex nature and multiple input/output needs of these types of systems, it is only available in the M2000 hardware series.
-

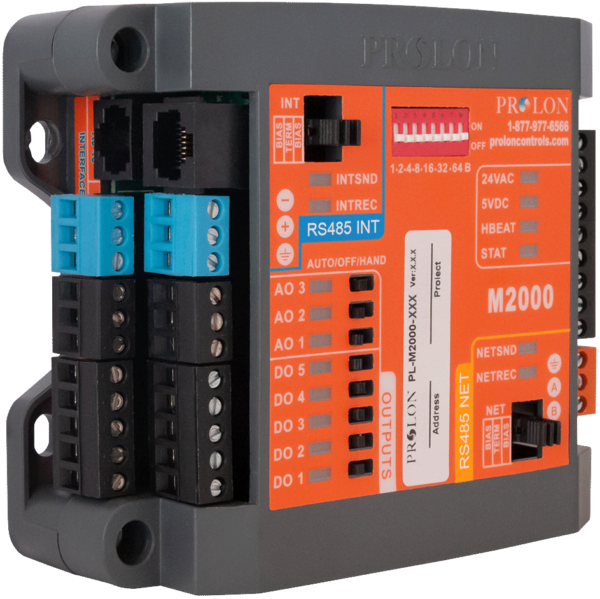

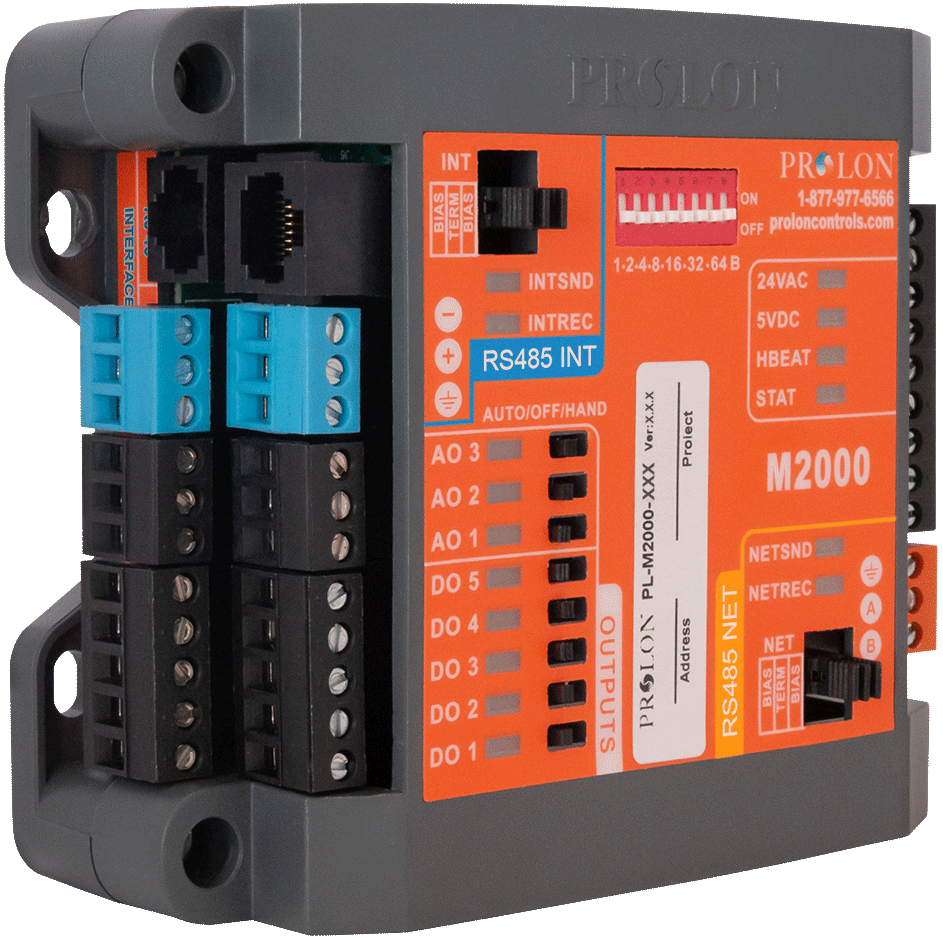

M2000-HYD
- Standalone or networked operation
- Proportional+Integral (PI) control loops maximize performance
- Built-in protection sequences with configurable temperature limits and minimum delays
- 9 universal inputs
- 5 digital, 3 analog outputs with self-resetting fuses
- Quick and easy installation using detachable numbered terminal blocks
- Lead-lag sequences for the compressors
- Outdoor temperature reset for the tank setpoints
- Configurable heating/cooling priority modes
- Setpoints can be reset by network provided demands
- Hot and cold tank
- Dual recovery system
- Single hot tank with open or closed boiler loop
- Dual energy boilers
- Built-in auxiliary heat sequences
- Internal time clock with 7-day configurable schedule and holiday calendar
- Hand/Off/Auto switches on all 8 outputs
-
Specifications
M2000-HYD
- Standalone or networked operation
- Proportional+Integral (PI) control loops maximize performance
- Built-in protection sequences with configurable temperature limits and minimum delays
- 9 universal inputs
- 5 digital, 3 analog outputs with self-resetting fuses
- Quick and easy installation using detachable numbered terminal blocks
- Lead-lag sequences for the compressors
- Outdoor temperature reset for the tank setpoints
- Configurable heating/cooling priority modes
- Setpoints can be reset by network provided demands
- Hot and cold tank
- Dual recovery system
- Single hot tank with open or closed boiler loop
- Dual energy boilers
- Built-in auxiliary heat sequences
- Internal time clock with 7-day configurable schedule and holiday calendar
- Hand/Off/Auto switches on all 8 outputs
