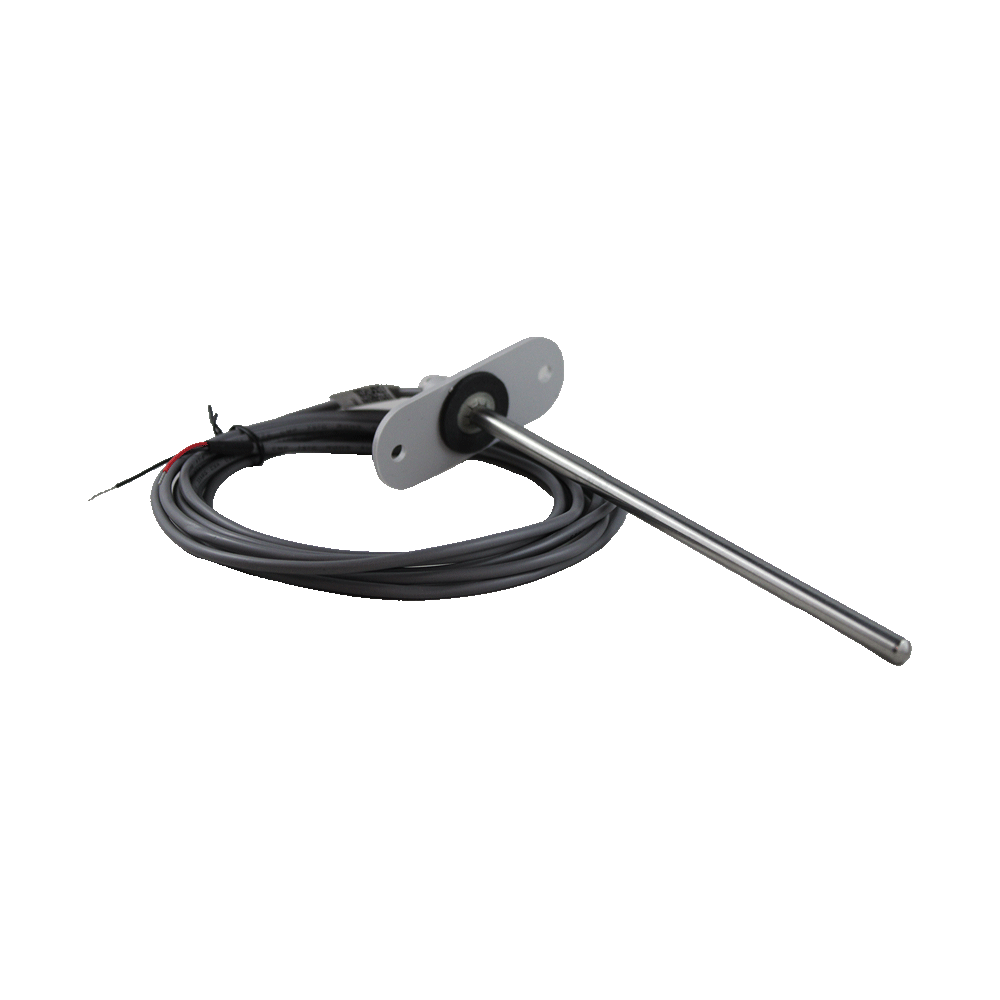

Duct Temperature Sensor with Bracket
The PL-DT-T6 single point duct temperature sensor utilizes a precision sensor encapsulated in a 0.25” (6.35 mm) OD, 304 series stainless steel probe. Probe provides excellent heat transfer, fast response and resistance to moisture penetration.
-
- Sensor Type: 10,000 Ω Type 3, NTC Thermistor
- Sensor Accuracy: ±0.36°F (±0.2°C) @ 77°F (25°C)
- Probe Sensing Range: -40 to 140°F (-40 to 60°C)
- Probe Diameter: 0.25” (6.35 mm)
- Probe Length: 6” (150 mm)
- Wire Material: FT -6 rated plenum cable, 22 AWG
- Wire Length: 10’ (3.05m)
- Bracket Material: ABS, UL94-V0
-
Specifications
- Sensor Type: 10,000 Ω Type 3, NTC Thermistor
- Sensor Accuracy: ±0.36°F (±0.2°C) @ 77°F (25°C)
- Probe Sensing Range: -40 to 140°F (-40 to 60°C)
- Probe Diameter: 0.25” (6.35 mm)
- Probe Length: 6” (150 mm)
- Wire Material: FT -6 rated plenum cable, 22 AWG
- Wire Length: 10’ (3.05m)
- Bracket Material: ABS, UL94-V0
