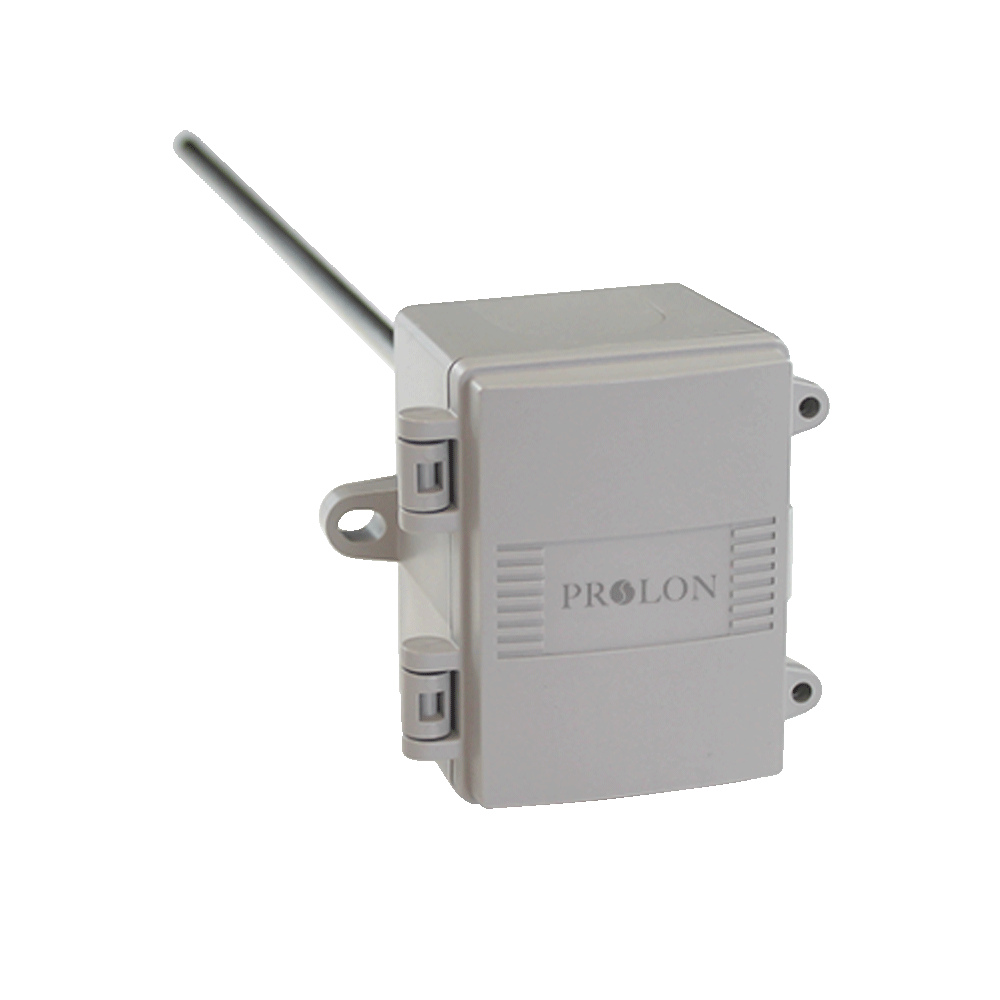

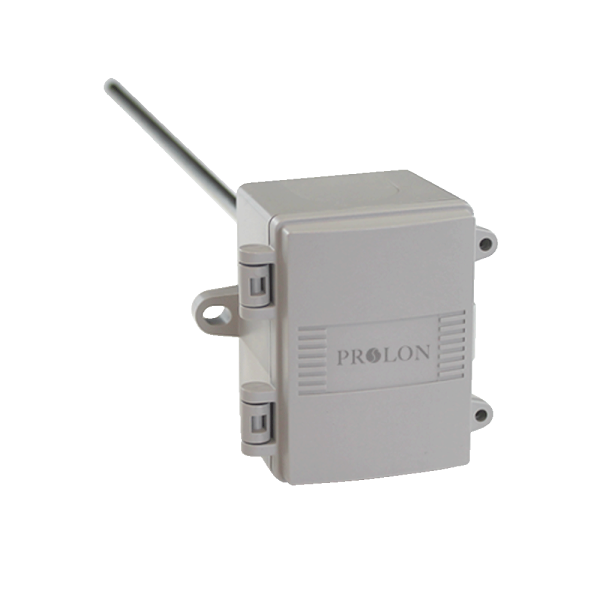

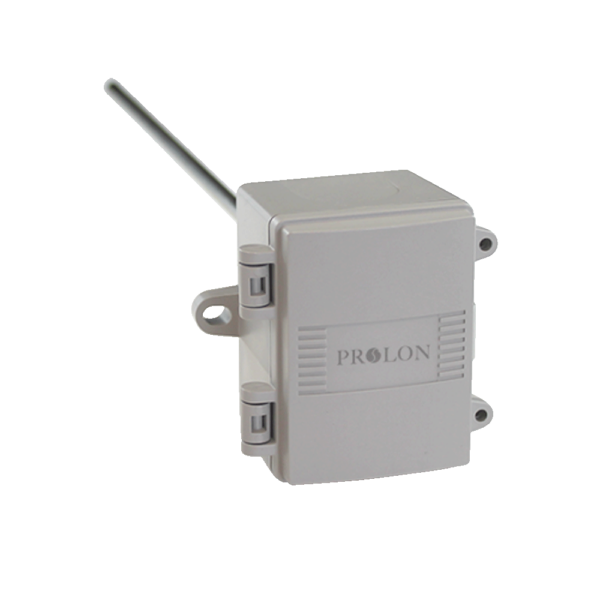

Duct/Immersion Temperature Sensor with Enclosure
The all purpose single point temperature sensor utilizes a precision sensor encapsulated in a 0.236” (6 mm), 304 series stainless steel probe. The probe provides excellent heat transfer, fast response and resistance to moisture penetration.
-
- Sensor Type: 10,000 Ω Type 3, NTC Thermistor
- Sensor Accuracy: ±0.36°F (±0.2°C) @ 77°F (25°C)
- Probe Sensing Range: -40 to 212°F (-40 to 100°C)
- Probe diameter: 0.236” (6 mm)
- Probe length: 8” (200 mm)
- Enclosure: ABS, UL94-V0, IP65 (NEMA 4X), with thread adapter (1/2” NPT to M16), and cable gland fitting
-
Specifications
- Sensor Type: 10,000 Ω Type 3, NTC Thermistor
- Sensor Accuracy: ±0.36°F (±0.2°C) @ 77°F (25°C)
- Probe Sensing Range: -40 to 212°F (-40 to 100°C)
- Probe diameter: 0.236” (6 mm)
- Probe length: 8” (200 mm)
- Enclosure: ABS, UL94-V0, IP65 (NEMA 4X), with thread adapter (1/2” NPT to M16), and cable gland fitting
