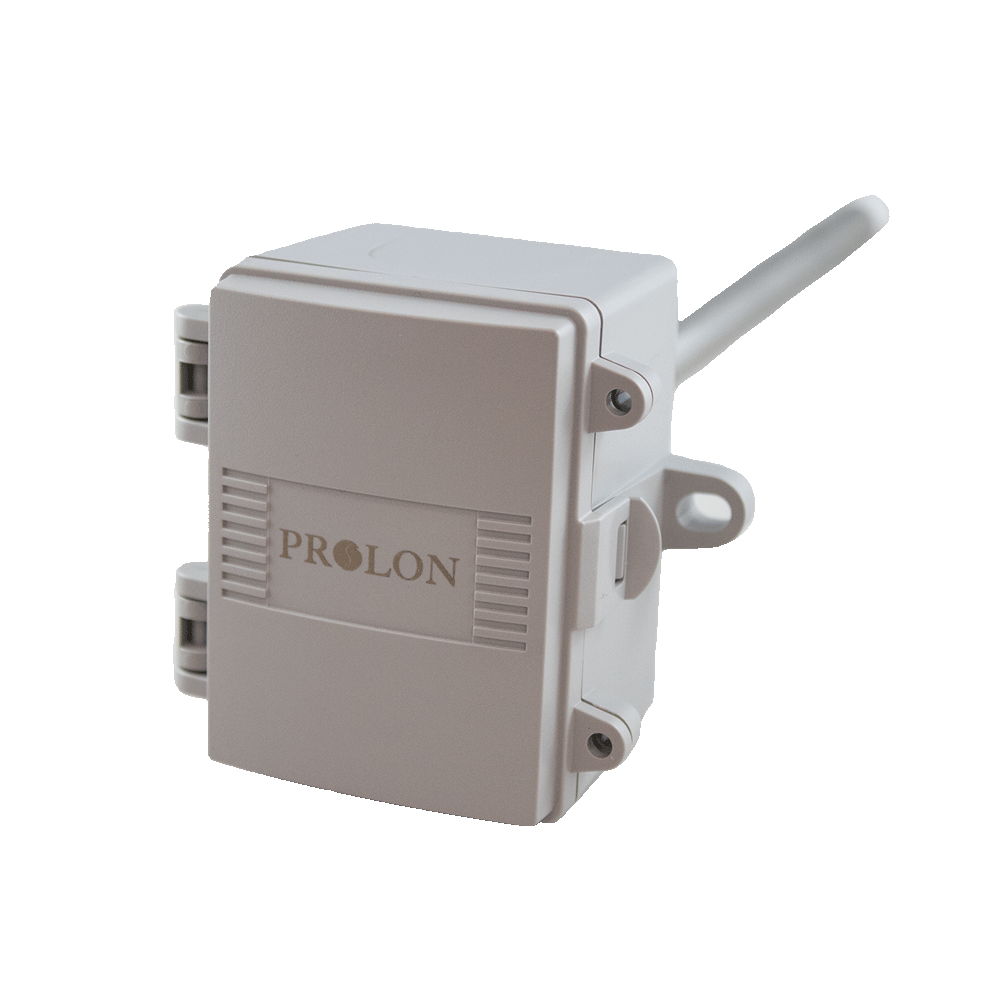

Duct Humidity Transmitter
The PL-DT-RH Duct Humidity Transmitter uses a highly accurate and reliable Thermoset Polymer based capacitance humidity sensor and state-of-the-art digital linearization and temperature compensated circuitry to monitor humidity levels.
-
- Sensor Type: Thermoset polymer based capacitive
- Sensor Accuracy: ±5 %RH (5 to 95 %RH)
- Measurement Range: 0 to 100 %RH
- Output Signal: 4-20 mA current loop, 0-5 Vdc, 0-10 Vdc, or 0-1 Vdc (field selectable)
- Enclosure: ABS, UL94-V0, IP65 (NEMA 4X), with thread adapter (1/2” NPT to M16) and cable gland fitting
-
Specifications
- Sensor Type: Thermoset polymer based capacitive
- Sensor Accuracy: ±5 %RH (5 to 95 %RH)
- Measurement Range: 0 to 100 %RH
- Output Signal: 4-20 mA current loop, 0-5 Vdc, 0-10 Vdc, or 0-1 Vdc (field selectable)
- Enclosure: ABS, UL94-V0, IP65 (NEMA 4X), with thread adapter (1/2” NPT to M16) and cable gland fitting
- Documentation
