Analog Wall Sensors

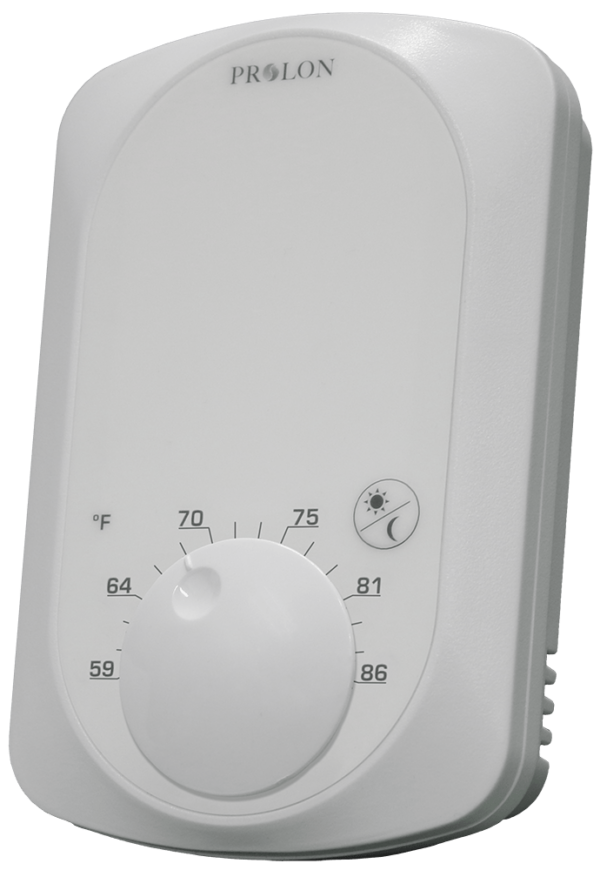

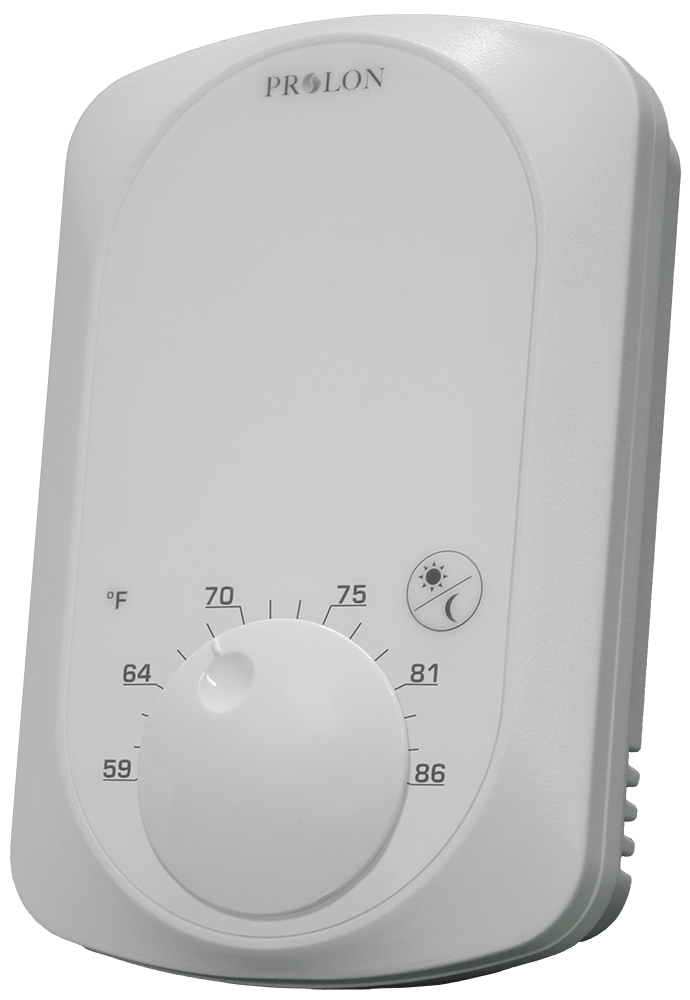

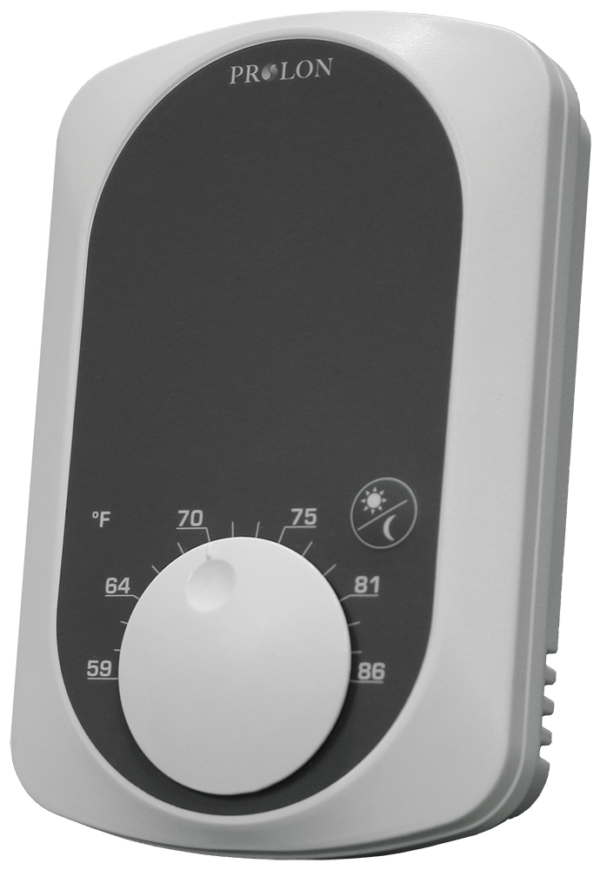

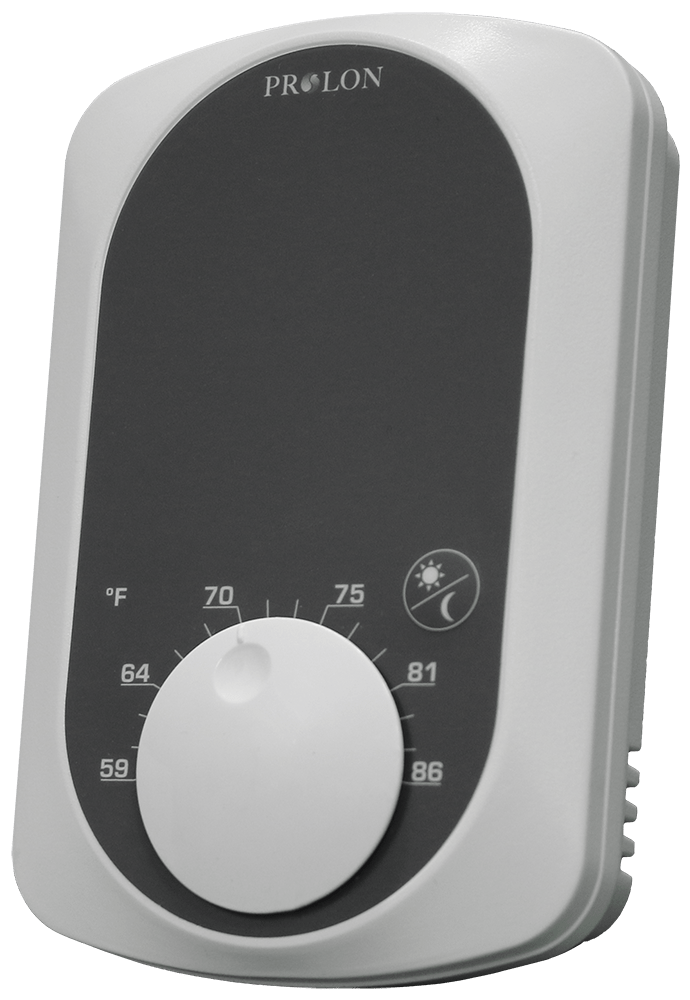

The Prolon RS series Analog Wall Sensor is a non-communicating device that provides conventional resistive signals to the controller to which it is connected that represent current space temperature, desired setpoint and request for occupancy override. While still a valid and useful sensor, we find that many of our customers prefer to choose from our Communicating Wall Sensors for a larger selection of function and style.
Please note that the RS series wall modules will only work with these controllers

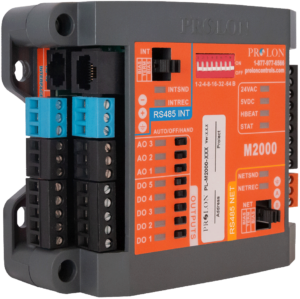

- M2000 RTU and RTUS
- M2000 HP and HPS

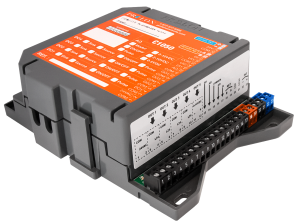

- C1000 and C1050 VAV
- C1000, C1050, and M2000 FlexIO
-
- 10K-3 NTC thermistor 1% precision
- Standard 10K setpoint potentiometer +/- 20% tolerance across the range
- Quick and easy installation using detachable numbered terminal blocks
- Embossed momentary pushbutton used to override unoccupied status
- Available temperature units: Celsius, Fahrenheit, or simple +/-
- Mounting hardware provided for installation on dry wall or a standard single-gang electrical box
-
Specifications
- 10K-3 NTC thermistor 1% precision
- Standard 10K setpoint potentiometer +/- 20% tolerance across the range
- Quick and easy installation using detachable numbered terminal blocks
- Embossed momentary pushbutton used to override unoccupied status
- Available temperature units: Celsius, Fahrenheit, or simple +/-
- Mounting hardware provided for installation on dry wall or a standard single-gang electrical box
- Documentation
